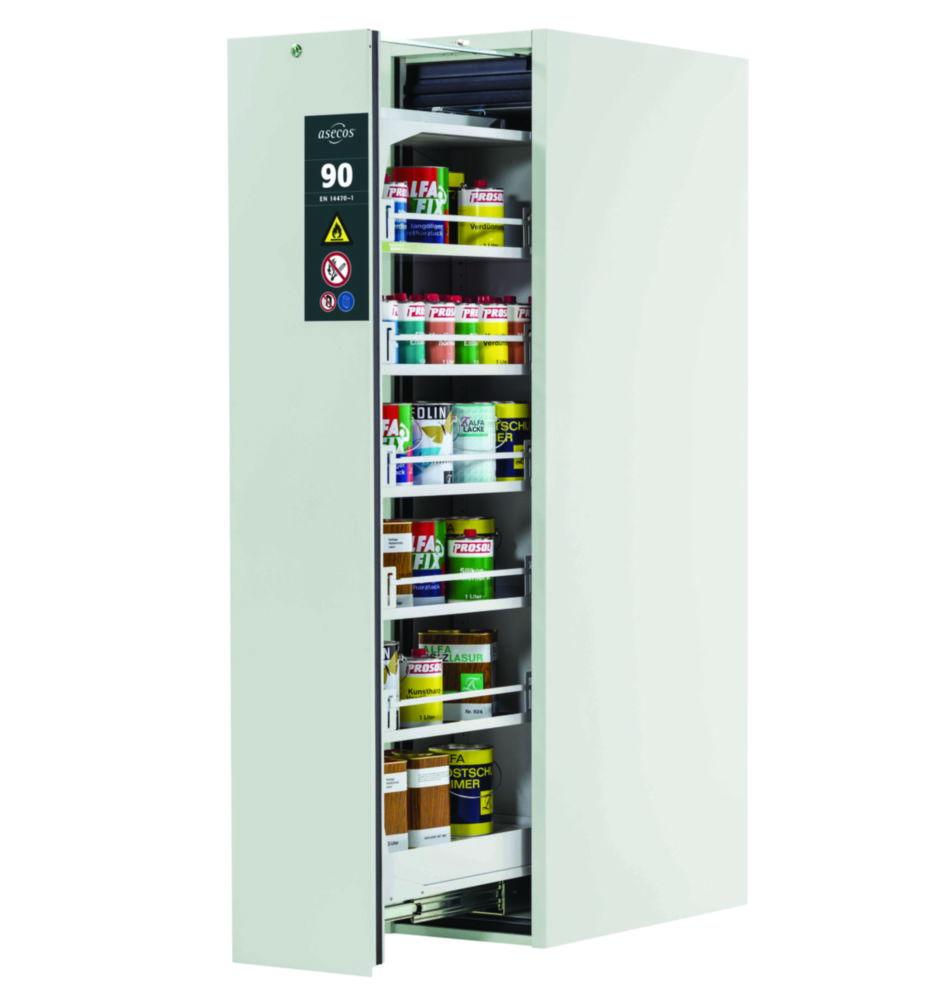

Asecos Safety Storage Cabinet Type 90 V-MOVE 450 x 860 x 1966 (HxWxD), Corpus and Doors RAL 7035 / Light Grey

The Asecos Safety Storage Cabinet Type 90 V-MOVE is an essential, space-saving storage solution designed for the safe and approved handling of flammable hazardous substances in laboratories and industrial environments. Featuring a robust, stable and scratch-resistant powder-coated steel body with a professional RAL 7035 light grey finish (also available in RAL 9010 Pure White), this cabinet includes a vertical drawer system for easy access and clear visibility of stored containers. The electronically operated drawer opens with ease and automatically closes after approximately 60 seconds, accompanied by acoustic and visual alerts for added safety. Integrated DN 75 air ducts are ready for connection to an external ventilation system to ensure effective fume management. Additional features include adjustable levelling feet to compensate for uneven floors and a secure cylinder lock with red/green status indicator, compatible with existing locking systems. An optional guard rail system is also available for enhanced workplace safety.

Key Features:

• Brand: Asecos
• Model: Type 90 V-MOVE
• Colour: RAL 7035 Light Grey (also available in RAL 9010 Pure White)
• Dimensions (HxWxD): 1966 x 860 x 449 mm
• Material: High-quality, robust, scratch-resistant steel with powder-coated finish
• Design: Space-saving vertical drawer system for clear visibility and ease of access
• Operation: Electronic drawer opening and automatic closing after approx. 60 seconds with acoustic and visual signals
• Ventilation: Integrated DN 75 air ducts ready for external exhaust system connection
• Locking: Cylinder lock with red/green locking state indicator; can be integrated into existing locking systems
• Adjustability: Levelling feet to compensate for uneven flooring
• Optional Feature: Guard rail system for added safety
• Application: Ideal for secure, regulation-compliant storage of flammable hazardous substances in laboratories and industrial workplaces

Scope of Supply Versions:

1. Cabinet without interior equipment
2. 4 x shelves (2.5-l bottles), 1 x perforated insert, 1 x bottom collecting sump
3. 5 x shelves (1-l bottles), 1 x perforated insert, 1 x bottom collecting sump
4. Left / Right: 4 x shelves (2.5-l bottles), 1 x perforated insert, 1 x bottom collecting sump
5. Left / Right: 5 x shelves (1-l bottles), 1 x perforated insert, 1 x bottom collecting sump
6. Left: 4 x shelves (2.5-l bottles), Right: 5 x shelves (1-l bottles), each side includes 1 x perforated insert and 1 x bottom collecting sump

Optional Accessories:

• Recirculating air filter system with exhaust air monitoring (Cat. No. 9.840 650)
• Ventilation system with exhaust air monitoring (Cat. No. 6.238 986)
• Ventilation system without exhaust air monitoring (Cat. No. 9.840 616)

The Asecos Type 90 V-MOVE cabinet combines safety, durability, and intelligent space utilisation for modern lab and industrial environments. With approved fire resistance and a design tailored for compliance and convenience, it is a reliable solution for the secure storage of hazardous materials, helping facilities maintain safety and operational efficiency with confidence.
