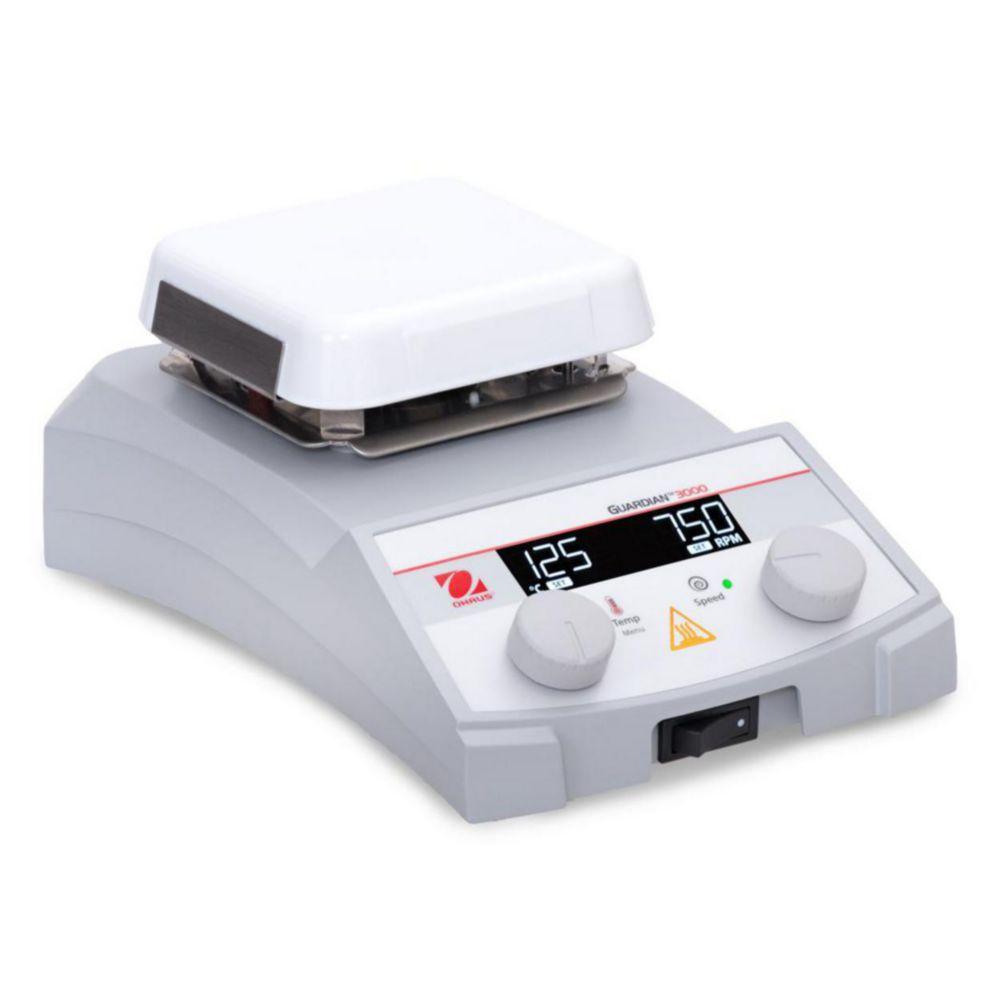

Hotplate-Stirrer e-G31HS04C 230V EU
Sold by: Labex Pty Ltd
Available Soon
Part #: 4.685 792Manufacturer #: 30680280
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The magnetic stirrer enables controlled heating and powerful stirring for general laboratory applications. The bright LCD display features easy-to-read temperature and speed settings, intuitive icons, and a clearly visible hot indicator that lights up when the heater is above 40 °C.
- Chemical-resistant ceramic plate
- SafetyHeat™ early detections system with two independent safety controls monitors the electronics and switches off heating before overheating occurs
- Robust metal housing with splash-proof design
Product Specifications
- HS Code #84798200
- Depth264 mm
- Depth working area102 mm
- Dimensions (WxDxH)163 x 264 x 110 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Heating capacity550 W
- Heating temperatureRT +5 ... 500 °C
- Height110 mm
- IP codeIP 21
- Material stirring surfaceCeramic
- Max. heating temperature500 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. speed1600 1/min
- Max. stirring capacity15 l
- Max. voltage240 V
- Min. heating temperature+5 °C
- Min. permitted ambient temperature5 °C
- Min. speed80 1/min
- Min. voltage220 V
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeEU
- Power supply220 ... 240 V, 50/60 Hz
- Rated capacity550 W
- Speed80 ... 1,600 1/min
- Typee-G31HS04C
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Weight2500 g
- Width163 mm
- Width working area102 mm
- With connection ext. temperature sensorYes
- Working area (WxD)102 x 102 mm
