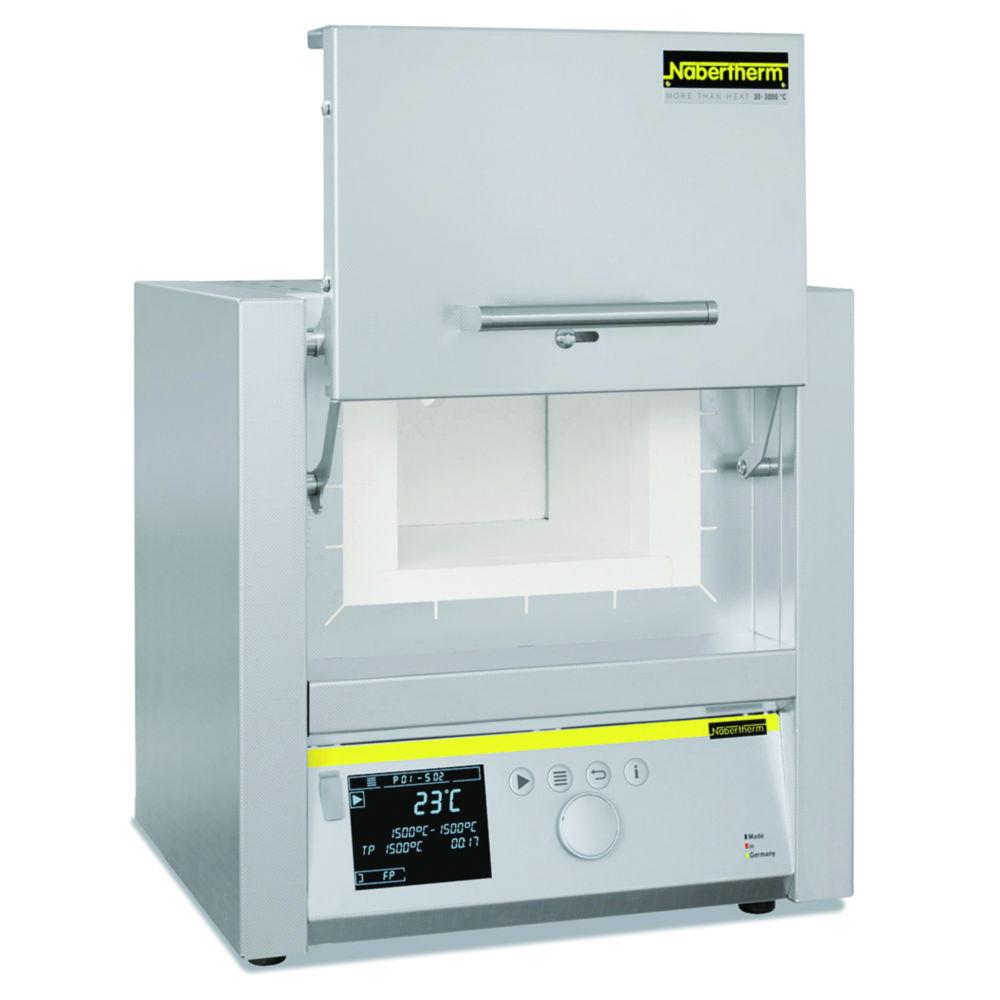

Nabertherm Muffle Furnace LT 24/12/C550, Tmax 1200°C with Lift Door
Product overview
The Nabertherm Muffle Furnace LT 24/12/C550 offers exceptional high-temperature performance with a maximum temperature of 1200°C. This 24L furnace features a spacious chamber and a lift door for easy access to samples, making it perfect for laboratory and industrial applications such as ashing, sintering, and material testing. With excellent temperature uniformity, energy-efficient operation, and durable construction, the LT 2412 C550 ensures reliable and consistent results. It is an ideal choice for applications requiring precise and controlled thermal processing.
Key Features:
- Brand: Nabertherm
- Model: LT 24/12/C550
- Maximum Temperature: 1200°C for a wide range of high-temperature processes
- Chamber Capacity: 24L, providing ample space for larger samples and efficient thermal processing
- Door Design: Lift door for safe and easy access to the furnace chamber
- Applications: Ideal for ashing, sintering, and material testing in industrial and laboratory environments
- Uniform Heat Distribution: Ensures even heating and accurate results across the chamber
- Durable Construction: Built for long-lasting reliability and performance in demanding environments
- Energy Efficiency: Designed to reduce energy consumption without compromising heating performance
The Nabertherm Muffle Furnace LT 24/12/C550 combines a large 24L chamber, high-temperature capabilities, and a practical lift door design, making it an ideal solution for precision thermal applications
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorLift door
- Ext. dim. (WxDxH)490 x 555 x 580 mm
- Ext. depth555 mm
- Ext. height580 mm
- Ext. width490 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)280 x 340 x 250 mm
- Int. width280 mm
- Max. temperature1200 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity24 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity4500 W
- TypeLT 24/12/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
