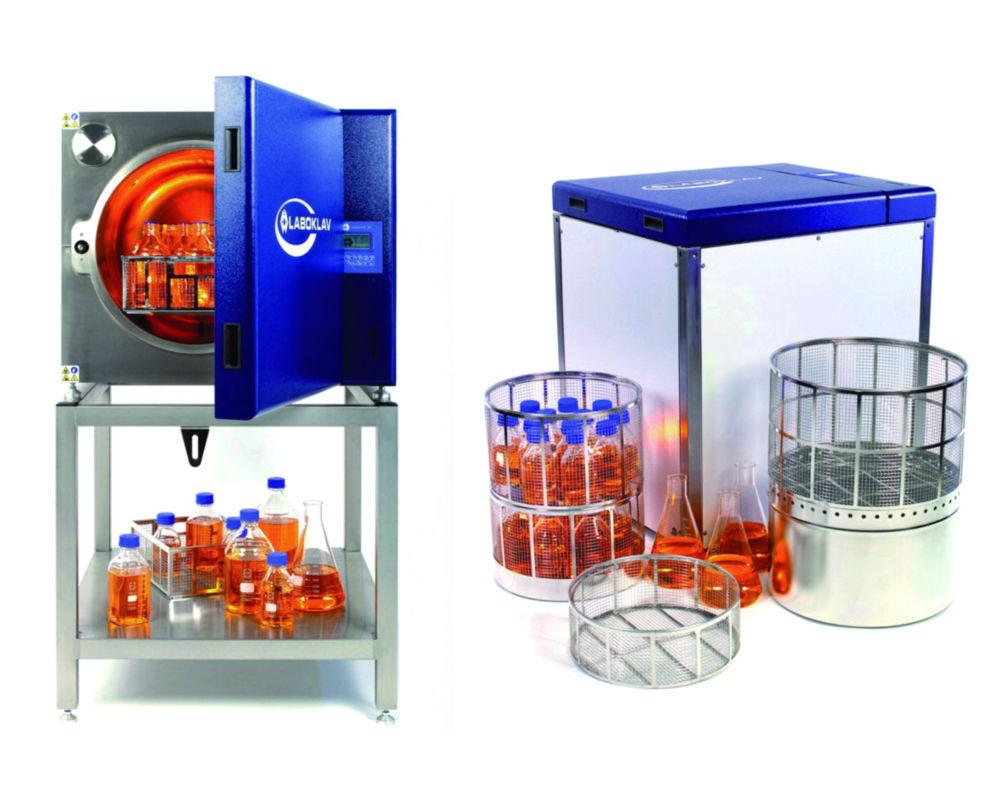

Representative image only
LABOKLAV 195-MV Combi Standard 195 liter capacity, tabletop unit with integrated fast cooling (air cooling)
Sold by: Labex Pty Ltd
Available Soon
Part #: 6.236 364Manufacturer #: 21.0195.001.005
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Steam sterilisers are availible with different chamber sizes, universal installation options as a free-standing or tabletop units and numerous configurations. Typical areas of application for the units include all microbiological laboratories in research institutions, universities, quality controls in the pharmaceutical and food industries as well as waste sterilization, for example in the field of medical diagnosis.
- Large multicolour touch control panel
- Fully automatic, motor-operated closure system
- Thermal lockout to prevent boiling over
- PT100 sensor
Product Specifications
- HS Code #84192000
- Depth int.990 mm
- Dim. Int. (Ø x H)500 x 990 mm
- Ext. dim. (WxDxH)840 x 1,215 x 700 mm
- Ext. depth1215 mm
- Ext. height700 mm
- Ext. width840 mm
- Power supply frequency50 Hz
- Int. Ø500 mm
- IP codeIP 24
- Max. pressure2.8 bar
- Max. temperature138 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity195 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50 Hz
- Temperature138 °C
- TypeLaboklav 195 MV
- Type of auxiliary energyMains connection
- UNSPSC41-10-37-06
- Weight255 kg
- With recoolingYes
- With vacuum facilityYes
Variant products
Products related to this item (5)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
21.0080.001.005 | 9.842 465 | LABOKLAV 80-MV Combi Standard 80 Liter usable volume, bench top unit with integrated fast liquid air cooling function | CEE | Laboklav 80 MV | 911 331,30 | |||
21.0100.001.005 | 6.229 215 | LABOKLAV 100-MV Combi Standard 100 Liter usable volume, bench top unit with integrated fast liquid air cooling function | CEE | Laboklav 100 MV | 992 519,00 | |||
21.0160.001.005 | 6.285 584 | LABOKLAV 160-MV Combi Standard 160 liter useable space, stand and tabletop unit with integrated Steam generator for 10KW | CEE | Laboklav 160 MV | 1 195 500,90 | |||
21.0135.001.005 | 7.653 520 | LABOKLAV 135-MV Combi Standard 135 Liter usable volume, bench top unit with integrated fast liquid air cooling function | CEE | Laboklav 135 MV | 1 114 313,20 | |||
21.0055.001.005 | 6.241 027 | LABOKLAV 55-MV Combi Standard 55 Liter usable volume, bench top unit with integrated fast liquid air cooling function | CEE | Laboklav 55 MV | 830 143,60 |
