Ultrasonic homogenizer HD 4100 with UK-plug SONOPULS, Set: consisting of: generator GM 4200, ultrasonic converter UW 100,

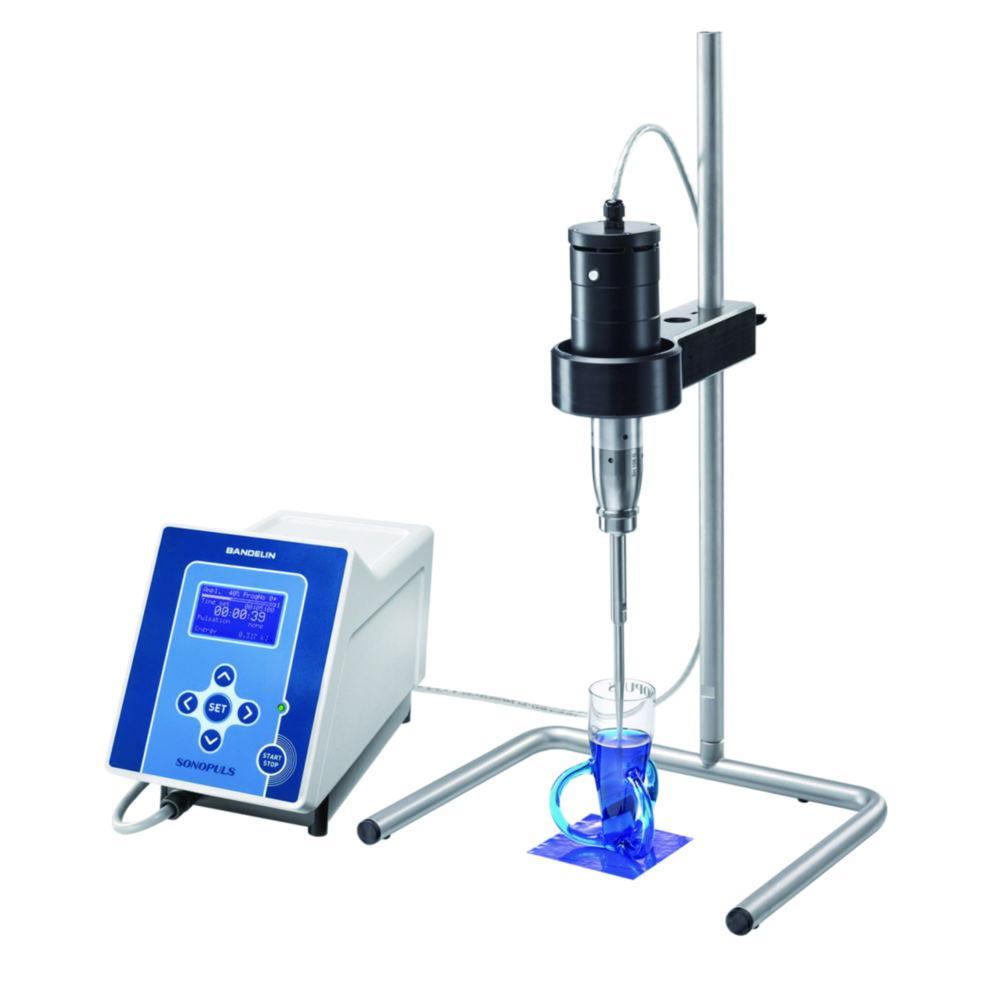

Representative image only

Ultrasonic homogenizer HD 4100 with UK-plug SONOPULS, Set: consisting of: generator GM 4200, ultrasonic converter UW 100,

Sold by: Labex Pty Ltd
Available Soon
Part #: 6.494 501Manufacturer #: 4100-GB
Estimated shipping time:Contact us via live chat or via contact us page

R 118 938,75

See the available (2) variant products
Product overview
For volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:
  • HF generator GM 4200
  • Ultrasonic converter UW 100
  • Standard horn SH 100 G
  • Titanium probe TS 103, diam. 3 mm

Further Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.
Product Specifications
  • HS Code #84798200
  • Amplitude10 ... 100 %
  • Depth335 mm
  • Power supply frequency50/60 Hz
  • Height230 mm
  • IP codeIP 30
  • Max. amplitude100 %
  • Max. voltage230 V
  • Max. working volume50 ml
  • Min. amplitude10 %
  • Min. working volume3 ml
  • Plug typeUK
  • Power setting range30...150 W
  • Power supply230 V, 50/60 Hz
  • Rated capacity100 W
  • TypeSONOPULS HD 4100
  • Type of auxiliary energyMains connection
  • Ultrasonic frequency20 kHz
  • UNSPSC41101504
  • Width150 mm
  • Working volume3 ... 50 ml
