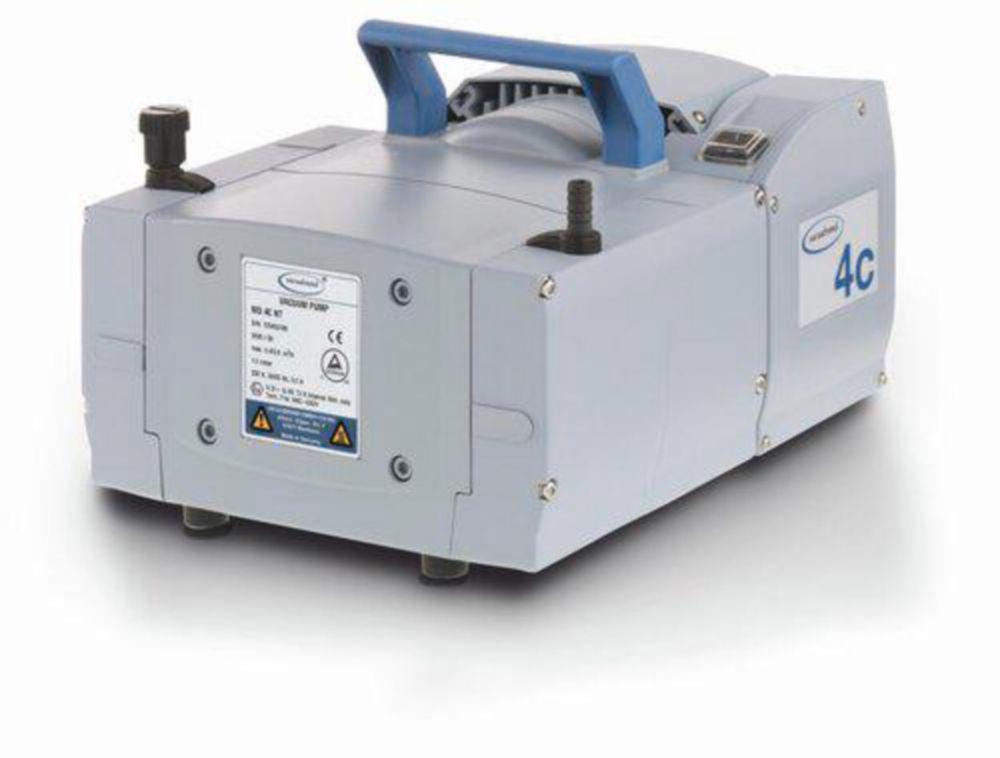

Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug

The Vacuubrand MD 4C NT is a high-performance, three-stage diaphragm pump designed for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50 Hz, this pump comes equipped with a CEE plug for convenient integration into your laboratory infrastructure.

Key Features:

• Brand: Vacuubrand
• Type: Three-stage diaphragm pump for high-performance vacuum generation
• Voltage: 230 V
• Frequency: 50 Hz
• Plug Type: CEE plug for easy connection
• Ultimate Vacuum: 1.5 mbar (1.1 torr)
• Ultimate Vacuum with Gas Ballast: 3 mbar (2.2 torr)
• Max. Pumping Speed at 50 Hz: 3.4 m³/h
• Number of Heads: 4
• Number of Stages: 3
• Inlet Connection: Hose nozzle DN 8–10 mm
• Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.25 kW
• Rated Motor Speed at 50 Hz: 1500 min⁻¹
• Protection Class (IEC 60529): IP 40
• Dimensions (L x W x H): 328 mm x 243 mm x 198 mm
• Weight: 14.3 kg
• Noise Level: 45 dBA
• ATEX Conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)

This diaphragm pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. Its robust construction and high chemical resistance make it suitable for demanding environments.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug used for?

It is a high-performance, three-stage diaphragm pump designed for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50 Hz, this pump comes equipped with a CEE plug for convenient integration into your laboratory infrastructure.

2. Is the Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug suitable for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings?

Yes. It is designed for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings, and offers a voltage of 230 V and a frequency of 50 Hz to support this kind of work.

3. What voltage and frequency does the Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug have?

It has a voltage of 230 V, a frequency of 50 Hz and an ultimate vacuum of 1.5 mbar (1.1 torr), and is supplied under manufacturer part number 20736400.

4. What type and plug type does the Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug offer?

It offers three-stage diaphragm pump for high-performance vacuum generation, CEE plug for easy connection, hose nozzle DN 8–10 mm and hose nozzle DN 8–10 mm.

5. How does the Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug compare with the Lutz Double Diaphragm Pump 1/4" PPT PP/PTFE from Lutz?

For continuous, oil-free pumping of corrosive gases and vapors in laboratory settings, the VACUUBRAND model is the better choice, offering a voltage of 230 V, a frequency of 50 Hz and an ultimate vacuum of 1.5 mbar (1.1 torr). The Lutz model offers a connection of 1/4 inch as an alternative, while the VACUUBRAND model's three-stage diaphragm pump for high-performance vacuum generation and CEE plug for easy connection help make it a strong fit for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings.
