What is a Buchner Funnel? Uses, Setup and How Vacuum Filtration Works

Introduction

A Buchner funnel is a flat-bottomed funnel that works with filter paper and a vacuum to separate a solid from a liquid at speed. It is the standard tool for vacuum filtration, drawing the liquid through far quicker than gravity and leaving a firm, well-drained cake behind.

In South African laboratories it is a common sight, from minerals and assay work to environmental and water testing, SANAS-accredited quality control and university chemistry. Wherever a solid must be collected or a precipitate isolated, and paired with a filter flask and a vacuum source, it turns a slow filtration into a quick, repeatable step.

This guide covers what a Buchner funnel is, what it is used for, how vacuum filtration actually works, how to set one up step by step, and how to choose the right funnel for your bench.

What is a Buchner funnel?

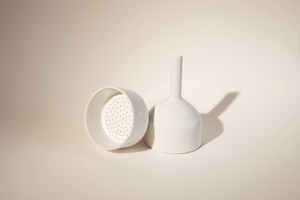

It is a funnel with a flat, perforated plate near the base. A disc of filter paper sits on the plate, the solid-and-liquid mixture is added on top, and a vacuum underneath draws the liquid through while the solid remains as a cake.

On its own the funnel is only part of the rig. It seats into a thick-walled filter flask through an airtight adapter, and the flask connects to a vacuum source. Tap a part below to see how the pieces fit. The funnel is named after the industrial chemist Ernst Buchner.

What a Buchner funnel is used for

The common thread is quick separation of a solid from a liquid under vacuum. Typical uses in South African labs include:

• Collecting crystals after a recrystallisation
• Isolating a precipitate from a reaction
• Washing a solid product on the filter
• Drawing air through to dry the filter cake
• Filtering larger sample volumes quickly
• Recovering a catalyst or drying agent from solution

Because the vacuum both speeds the flow and helps dry the cake, the Buchner funnel is the usual choice whenever the solid is what you want to retain, rather than merely clarifying a liquid.

How vacuum filtration works

Vacuum filtration relies on a pressure difference. The vacuum lowers the pressure beneath the filter paper, so ordinary atmospheric pressure above the mixture drives the liquid through the paper much faster than gravity can. Step through the setup and see it run.

How to set up a Buchner funnel

The animation above walks through it visually. As a checklist to follow at the bench:

1. Secure the filter flask. Clamp a thick-walled, vacuum-rated side-arm flask to a stand. A standard conical flask is not built for vacuum and can implode.
2. Seat the funnel. Fit the Buchner funnel into the flask neck with a snug rubber adapter, bung or ring, so the join is airtight.
3. Add and wet the paper. Place a filter paper disc that covers every hole without curling up the sides, then dampen it with a little solvent so the mixture cannot slip around the edge.
4. Connect the vacuum through a trap. Run tubing from the side arm to a trap bottle, then to a water aspirator or vacuum pump, so nothing can be drawn back into your filtrate.
5. Apply vacuum and pour. Switch on the vacuum, then pour the mixture steadily into the centre of the funnel. The liquid is pulled through and the solid builds up as a cake.
6. Wash, dry, then release. Rinse the cake with a little cold solvent, keep the vacuum on to pull it dry, then break the vacuum at the source before switching off to avoid suck-back.

Materials and types

Buchner funnels come in a few materials, each with a sweet spot. Tap one to see where it fits.

For very small quantities, the Hirsch funnel is the close relative to reach for: same principle, but smaller, with sloped sides suited to collecting milligram amounts of solid.

Common mistakes to avoid

A few habits account for most filtration problems. Watch out for:

• Using a thin-walled flask not rated for vacuum, which risks implosion
• Not wetting the paper first, so the mixture seeps around the edges
• A paper disc that is too large and curls up the sides, leaving a leak path
• No trap in the line, so water or oil is sucked back into the filtrate
• Switching off the pump before breaking the vacuum, causing suck-back
• Pouring too fast and overflowing the funnel

Each of these costs you either product or a clean result, so build them into your routine.

Vacuum vs gravity filtration

The Buchner funnel is for vacuum filtration, but gravity filtration still has its place. Compare the two below.

Final thoughts

The Buchner funnel is a simple piece of kit that makes filtration quick, clean and repeatable. Understanding how the vacuum does the work helps you set it up safely, choose the right funnel and material, and finish with a cleaner, drier solid. For any South African lab that isolates solids, it remains a bench essential.
