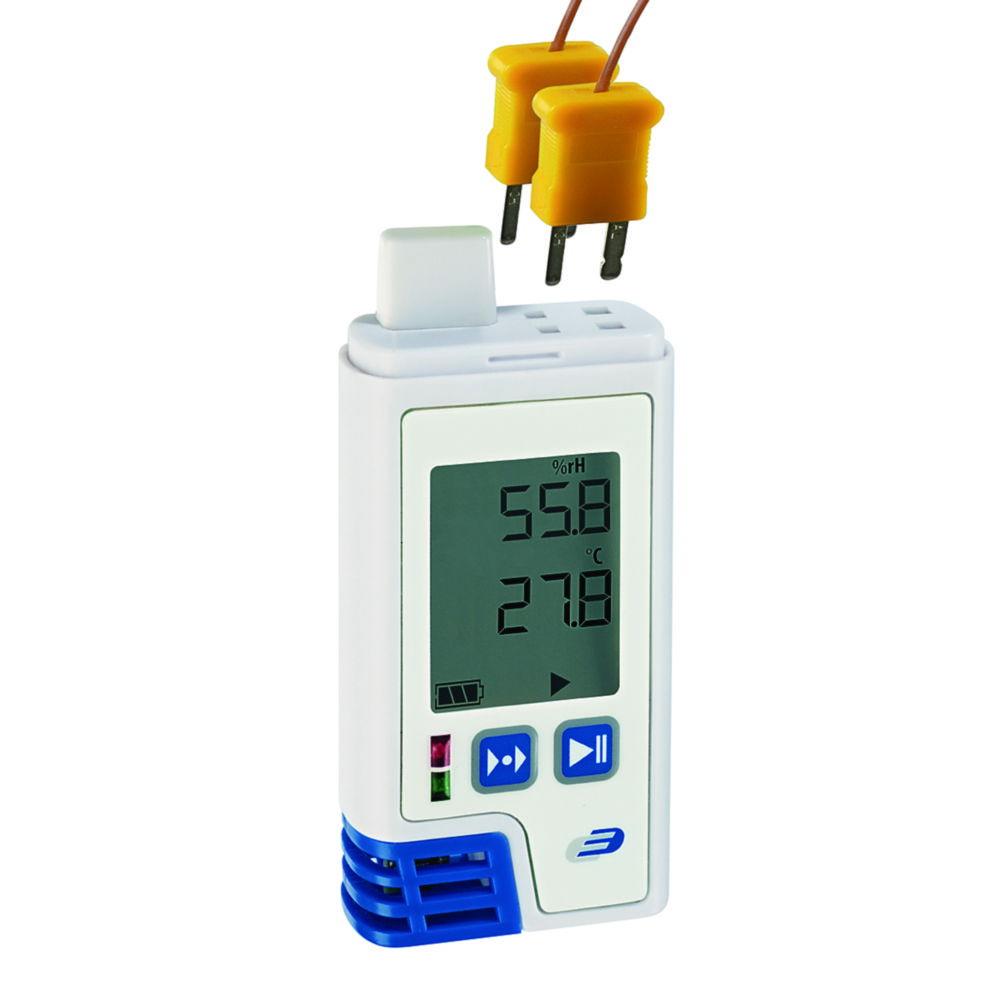

DOSTMANN PDF Data Logger LOG210 TC with Display for Temperature and Humidity, 2x External (Type K)

Brand:Dostmann

Specifications

HS Code #
90258040
Depth
20 mm
Dimensions (WxDxH)
42 x 20 x 91.5 mm
Height
91.5 mm
Max. measuring cycle
24 h
Max. relative humidity
100 %
Max. temp. (external)
1370 °C
Max. temperature
70 °C
Measuring cycle
10 sec ... 24 h
Min. measuring cycle
10 sec
Min. relative humidity
0 %

R 4 301,00

Inc. VAT

Available soon

Product description

The DOSTMANN PDF Data Logger LOG210 TC is an advanced device designed to monitor both temperature and humidity, featuring a display for real-time data visualization. Equipped with two external Type K thermocouple inputs and a motion sensor for shock recording, this logger provides precise environmental monitoring ideal for industrial, laboratory, and transport applications. It offers a freely adjustable recording interval from 10 seconds to 24 hours, min and max values resettable on the display, and a time marking function ("Time Marker") during data recording. The device supports automatic PDF output via USB without requiring software or driver installation. Status and alarm LEDs with buzzer alerts ensure reliable notifications, and the display can be switched off to conserve power. Battery life exceeds 4 years at intervals greater than 15 minutes.

Key Features:

  • Brand: DOSTMANN
  • Display: Integrated display for easy viewing of temperature and humidity readings with min/max reset
  • Temperature Inputs: 2x external Type K thermocouple inputs (1 m length)
  • Humidity Measurement: Accurate humidity tracking for complete environmental monitoring (sensor sold separately)
  • Motion Sensor: Detects shocks and movement during recording
  • Recording Interval: Freely adjustable from 10 seconds to 24 hours
  • Time Marking Function: "Time Marker" for marking events during data recording
  • Data Output: Automatic PDF generation via USB; device usable without software or driver installation
  • No Driver Installation Needed
  • USB Interface: For easy data transfer
  • Memory Capacity: Stores approximately 60,000 measurements
  • Alarm System: Status and alarm LEDs with buzzer
  • Power: Battery life greater than 4 years at intervals over 15 minutes
  • Can Be Switched: Can be switched off to save power
  • Software: Available for free download on the manufacturer's website
  • Applications: Ideal for industrial, laboratory, and transport environments requiring precise temperature and humidity logging

Scope of Supply:

  • Data logger
  • 2 thermocouples type K (1 m length)
  • Wall mount
  • Battery
  • USB cover
  • Screws and dowels

Temperature and humidity sensors are available separately.

The DOSTMANN PDF Data Logger LOG210 TC offers comprehensive environmental monitoring with dual external temperature inputs and humidity tracking, making it an essential tool for a wide range of applications.

Accessories

Sensor cable extension

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Sensor cable extension, 2 m411165005090-00716.317 624R 354,20

Thermocouple, thermocouple Type K, fibre glass insulated

ProductType of probeMax. temperatureMfr#Part#AvailabilityPrice
Type K400 °C6010-00587.920 403R 733,70
