Representative Image

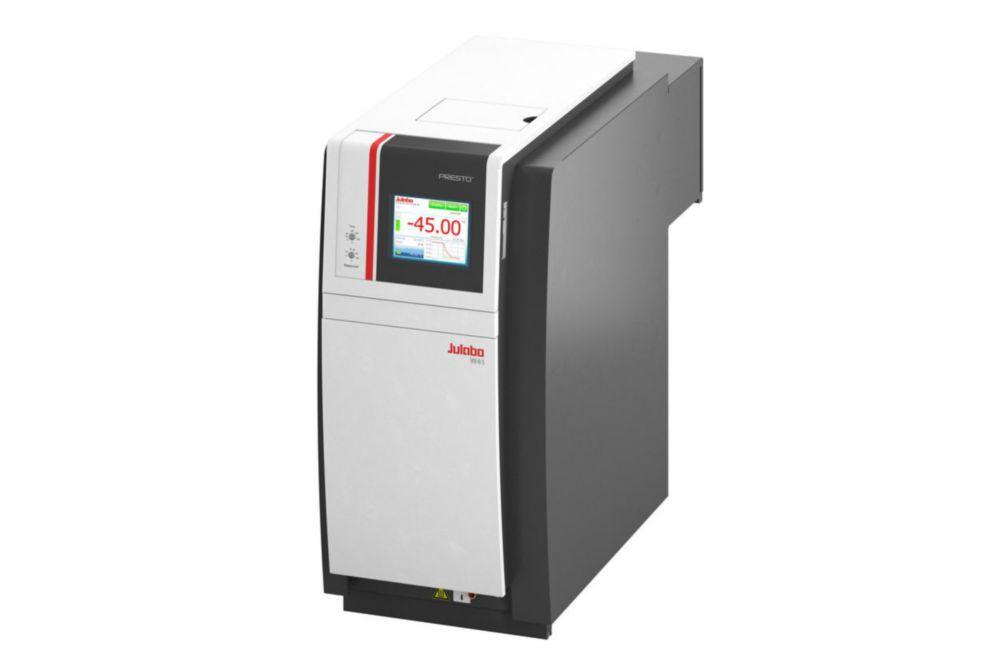

Julabo Dynamic Temperature Control System PRESTO W41, with Natural Refrigerant

Brand:JULABO

Specifications

Cooling capacity at 20 °C
1,47 kW
Ext. dim. (WxDxH)
330 x 750 x 670 mm
Ext. depth
750 mm
Ext. height
670 mm
Ext. width
330 mm
Heating capacity
2.7 kW
IP code
IP 20
Max. delivery pressure
1.6 bar
Max. temperature
250 °C
Min. temperature
-45 °C

R 695,800.60

Inc. VAT

Available soon

Product description

The Julabo Dynamic Temperature Control System PRESTO W41, with Natural Refrigerant is engineered for high-precision temperature control in laboratory applications. Utilizing an environmentally friendly natural refrigerant, this water-cooled system offers a wide working temperature range from -45°C to +250°C. Its compact design integrates a 5.7-inch industrial-grade touchscreen for intuitive operation, making it ideal for processes requiring rapid temperature changes and precise control.

Key Features:

  • Brand: Julabo
  • Temperature Range: -45°C to +250°C
  • Temperature Stability: ±0.01°C to ±0.05°C
  • Heating Capacity: 2.7 kW
  • Cooling Capacity: 1.47 kW at 20°C; 1.26 kW at 0°C; 0.56 kW at -20°C
  • Pump Flow Rate: 0 to 50 L/min
  • Pump Pressure: 0.1 to 1.6 bar
  • Refrigerant: R1270 (natural refrigerant with low GWP)
  • Interfaces: USB, Ethernet, RS232, Alarm output; optional RS485, Profibus DP
  • Display: 5.7-inch industrial-grade color touchscreen
  • Dimensions (W × D × H): 330 × 750 × 670 mm
  • Power Supply: 230 V, 50 Hz

This system is essential for laboratories requiring efficient, reliable, and environmentally conscious temperature control solutions.

Downloads

Accessories

Temperature hoses for highly dynamic temperature control systems PRESTO™, stainless steel 1.4404, triple insulation

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
-100 ... 350 °CStainless steel 1.440489302626.270 832R 23,023.00
-100 ... 350 °CStainless steel 1.440489302847.984 537R 62,086.20
-100 ... 350 °CStainless steel 1.440489302734.684 005R 39,265.60
-100 ... 350 °CStainless steel 1.440489302636.286 679R 27,298.70
-100 ... 350 °CStainless steel 1.440489302616.260 774R 19,050.90
-100 ... 350 °CStainless steel 1.440489302646.324 558R 36,052.50
-100 ... 350 °CStainless steel 1.440489302744.701 561R 51,030.10
-100 ... 350 °CStainless steel 1.440489302716.326 887R 27,475.80
-100 ... 350 °CStainless steel 1.440489302834.701 563R 50,321.70
-100 ... 350 °CStainless steel 1.440489302854.688 328R 94,546.10
-100 ... 350 °CStainless steel 1.440489302724.701 560R 33,902.00
-100 ... 350 °CStainless steel 1.440489302824.688 329R 39,265.60
-100 ... 350 °CStainless steel 1.440489302754.701 562R 79,568.50

ProfiNet Interface

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
ProfiNet Interface4110371589000264.686 939R 52,269.80

More items to explore

Highly dynamic temperature control systems PRESTO™, air-cooled 1-stage

ProductTypeType of auxiliary energyMfr#Part#AvailabilityPrice
A 30Mains connection94203009.857 915R 463,824.90
A 41Mains connection9420411.N14.686 942R 670,652.40
A 38Mains connection9420381.N14.686 941R 651,323.20

Highly dynamic temperature control systems PRESTO™, air-cooled 2-stage

ProductTypeType of auxiliary energyMfr#Part#AvailabilityPrice
A 70 N1Mains connection9420701.N14.686 943R 958,566.40
A 70 N2Mains connection9420701.N24.721 596R 958,566.40

Frequently asked questions

It is engineered for high-precision temperature control in laboratory applications. Utilizing an environmentally friendly natural refrigerant, this water-cooled system offers a wide working temperature range from -45°C to +250°C. Its compact design integrates a 5.7-inch industrial-grade touchscreen for intuitive operation, making it ideal for processes requiring rapid temperature changes and precise control.
