Representative Image

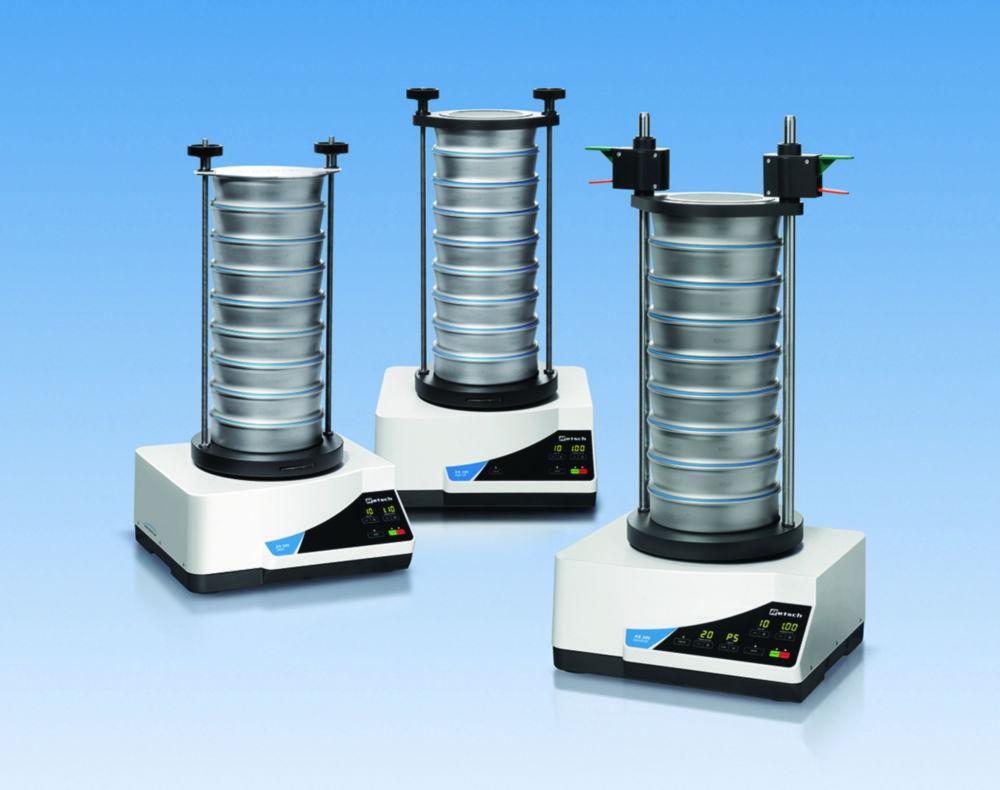

Retsch Sieve Shaker AS 450 230 V, 50 Hz BASIC

Brand:Retsch

Specifications

Amplitude
0 ... 2 mm
Depth
680 mm
Dimensions (WxDxH)
680 x 680 x 280 mm
Power supply frequency
50 Hz
Height
280 mm
Max. amplitude
2 mm
Max. feed quantity
15000 g
Max. measurement
125 mm
Max. sieve stack height
830 mm
Max. sieve stack mass
50 kg

R 232,152.80

Inc. VAT

Available soon

Product description

The Retsch Sieve Shaker AS 450 Basic is a powerful and robust solution for particle size analysis using test sieves with large diameters. Designed for both dry and wet sieving, it delivers high throughput and consistent results, even for heavy and coarse materials. The electromagnetic drive generates a throwing motion with angular momentum for effective and rapid separation. Equipped with a mobile operation panel, the AS 450 Basic allows intuitive control of all parameters and is built with a durable steel housing for long-term, heavy-duty operation.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 230 V, 50 Hz
  • Process Control: Digital adjustment of time, amplitude, and interval
  • Sieving Method: Suitable for dry and wet sieving
  • Motion: Throwing motion with angular momentum for effective separation
  • Drive: Efficient electromagnetic drive
  • Capacity: Up to 12 fractions per sieving operation
  • User Interface: Mobile operation panel for ergonomic, intuitive handling
  • Design: Sturdy steel housing for durability in industrial and laboratory environments
  • Maintenance: Maintenance-free operation for reduced downtime

Note: Please order clamping device, test sieves and collecting pan separately.

Scope of Supply:
Sieve shaker AS 450 Basic unit only.

The AS 450 Basic is ideal for processing large sample volumes and handling coarse or heavy materials across a range of industries, including construction, mining, and environmental testing.

Accessories

Sieving aids

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Nylon brush for sieving aids pack of 3
Retsch Nylon Brush for Sieving Aids, Pack of 3
Nylon brushes (pack of 3)411050003205000019.826 131R 3,769.70
Sieve stand fpr max. 10 sieves up to 203mm, 50mm high
Retsch Sieve Stand for Max. 10 Sieves (203mm, 50mm High)
Test sieve rack for max. 10 sieves up to 203 mm dia., 50 mm height411050003201200019.739 243R 13,080.10
Set rubber balls 20mm Ø pack of 5
Retsch Set of Rubber Balls (20mm Ø, Pack of 5)
Rubber ball, 20 mm dia.411050003235400019.826 133R 2,277.00
Agate balls 10mmØ pack of 10
Retsch Agate Balls (10mm Ø, Pack of 10)
Agate ball, dia. 10 mm411050003235400029.826 134R 4,958.80
Vulkollan cube 12x12x12mm pack of 10
Retsch Vulkollan Cube (12x12x12mm, Pack of 10)
Vulkollan cube 12 x 12 x 12 mm411050003290200019.826 132R 2,277.00
Cubes Vulkollan 20x20x20mm pack of 10
Cubes Vulkollan 20x20x20mm pack of 10
Vulkollan cube 20 x 20 x 20 mm411050003290200026.256 515R 2,757.70

Test Sieves, 200 x 50mm, ASTM E 11

ProductMaterialØMfr#Part#AvailabilityPrice
Test sieve 200 x 50 mm, ASTM E 11 45 µm 325 Mesh
Retsch Test Sieve, 200 x 50 mm, 45 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000457.072 178R 5,920.20
Test sieve 200 x 50 mm, ASTM E 11 75 µm 200 Mesh
Retsch Test Sieve, 200 x 50 mm, 75 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000756.302 995R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 125 µm 120 Mesh
Retsch Test Sieve, 200 x 50 mm, 125 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001256.079 527R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 150 µm 100 Mesh
Retsch Test Sieve, 200 x 50 mm, 150 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001506.300 558R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 212 µm mw. 70 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 212 µm, 70 Mesh
Stainless steel200 mm601320002126.236 779R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 300 µm mw. 50 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 300 µm, 50 Mesh
Stainless steel200 mm601320003006.236 780R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 850 µm mw. 20 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 850 µm, 20 Mesh
Stainless steel200 mm601320008506.236 785R 5,060.00
Test sieve 200 x 50 mm, ASTM E 11 53 µm 270 Mesh
Retsch Test Sieve, 200 x 50 mm, 53 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000536.207 269R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 90 µm 170 Mesh
Retsch Test Sieve, 200 x 50 mm, 90 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000906.225 117R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 63 µm 230 Mesh
Retsch Test Sieve, 200 x 50 mm, 63 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000636.225 116R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 106 µm 140 Mesh
Retsch Test Sieve, 200 x 50 mm, 106 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001066.229 536R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 180 µm mw. 80 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 180 µm, 80 Mesh
Stainless steel200 mm601320001806.236 778R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 250 µm mw. 60 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 250 µm, 60 Mesh
Stainless steel200 mm601320002506.236 459R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 600 µm mw. 30 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 600 µm, 30 Mesh
Stainless steel200 mm601320006006.236 783R 5,060.00
Test sieve 200 x 50 mm, ASTM E 11 1 mm 18 Mesh
Retsch Test Sieve, 200 x 50 mm, 1.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320010006.204 517R 5,262.40
Analysing sieve, 200 x 50 mm, ASTM E 11 355 µm mw. 45 Mesh
Retsch Analysing Sieve, 200 x 50 mm, 355 µm Mw. 45 Mesh, ASTM E 11
Stainless steel200 mm601320003556.236 781R 4,933.50
Analysing sieve, 200 x 50 mm, ASTM E 11 425 µm mw. 40 Mesh
Retsch Analysing Sieve, 200 x 50 mm, 425 µm Mw. 40 Mesh, ASTM E 11
Stainless steel200 mm601320004256.236 782R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 2 mm 10 Mesh
Retsch Test Sieve, 200 x 50 mm, 2.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320020006.259 448R 5,262.40
Test sieve 200 x 50 mm, ASTM E 11 6,3 mm 1/4" Mesh
Retsch Test Sieve, 200 x 50 mm, 6.30 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320063006.078 206R 4,857.60
Analysing sieve, 200 x 50 mm, ASTM E 11 710 µm mw. 25 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11 710 µm mw. 25 Mesh
Stainless steel200 mm601320007106.236 784R 5,060.00
Test sieve 200 x 50 mm, ASTM E 11 2.80 mm 7 Mesh
Retsch Test Sieve, 200 x 50 mm, 2.80 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320028006.282 590R 4,857.60
Test sieve 200 x 50 mm, ASTM E 11 4.75 mm 4 Mesh
Retsch Test Sieve, 200 x 50 mm, 4.75 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320047506.282 592R 4,857.60
Test sieve 200 x 50 mm, ASTM E 11 500 µm 35 Mesh
Retsch Test Sieve, 200 x 50 mm, 500 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320005006.204 516R 4,933.50
Test sieve 200 x 50 mm, ASTM E 11 3.35 mm 6 Mesh
Retsch Test Sieve, 200 x 50 mm, 3.35 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320033506.266 528R 4,857.60
Test sieve 200 x 50 mm, ASTM E 11 4 mm 5 Mesh
Retsch Test Sieve, 200 x 50 mm, 4.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320040006.203 098R 4,857.60
