Representative Image

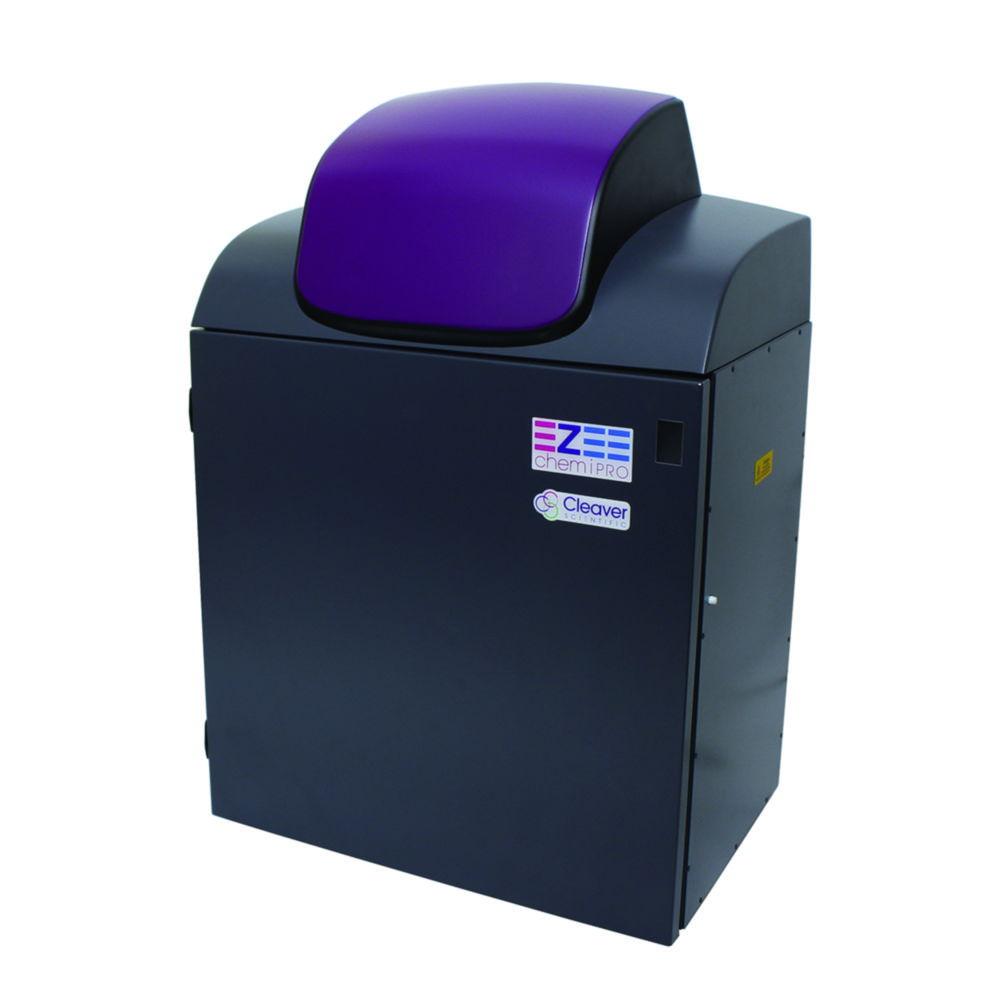

Thistle Scientific chemiPRO Chemiluminescence Documentation System with 302 nm UVT, 230 V, 50 Hz

Specifications

Depth
450 mm
Dimensions (WxDxH)
570 x 450 x 840 mm
Field of view
250 x 300 mm
Power supply frequency
50 Hz
Height
840 mm
Lens
F1.2, Zoom
Max. voltage
230 V
Power supply
230 V, 50 Hz
Resolution camera
4 MP
Sensor
CCD

R 584,505.90

Inc. VAT

Available soon

Product description

The Thistle Scientific chemiPRO Chemiluminescence Documentation System is designed for high-sensitivity imaging of chemiluminescent and fluorescent samples. Equipped with a cooled, high-resolution CCD camera with high quantum efficiency, the system enables precise detection of low-light signals, making it ideal for chemiluminescent Western blots, autoradiography, and other sensitive applications. Peltier cooling allows extended exposure times to detect faint signals without background noise. This compact system includes a 302 nm UV transilluminator for enhanced visualization and is powered by 230 V, 50 Hz.

Key Features:

  • Brand: Thistle Scientific
  • Camera: Cooled, high-resolution CCD with high quantum efficiency (QE)
  • Cooling: Peltier-cooled for low-noise, long-exposure imaging
  • Filter Wheel: Motor-driven 7-position filter wheel
  • Lens: Motor-driven lens for precision imaging control
  • Lighting: 302 nm UV transilluminator and long-life white LED EPI lighting
  • Power Supply: 230 V, 50 Hz
  • Software: Includes genePIX and geneQUANT acquisition and analysis software (license-free)
  • Compliance: CFR21 Part 11 compliant
  • Applications: Ideal for chemiluminescent Western blots, auto-radiography, fluorescent stains (ethidium bromide, SYBR, SYPRO, SAFE), Coomassie/silver stained gels, stain-free gels, GFP-plant imaging, colony/plaques on agar plates, bioluminescence, and 2D gels
  • Dimensions: 57 x 45 x 84 cm (W x D x H)

Scope of Supply:

  • Darkroom
  • Cooled high-resolution CCD camera
  • UV transilluminator (302 nm)
  • UV emission filter
  • License-free acquisition and analysis software (genePIX and geneQUANT)

This all-in-one system offers powerful performance, intuitive software, and broad compatibility with a wide range of fluorescent and chemiluminescent applications—ideal for modern research laboratories demanding sensitivity, flexibility, and ease of use.

Downloads

Accessories

HI-LED lighting modules for Gel documentation systems chemiPRO

ProductTypeDescriptionMfr#Part#AvailabilityPrice
CHEMIMOD-RGBHI-LED lighting module (red, green and blue)CHEMIMOD-RGB6.319 050R 228,206.00
CHEMIMOD-RGBIRHI-LED lighting module (red, green, blue and infrared)CHEMIMOD-RGBIR6.316 593R 263,120.00

Converters for Gel documentation systems chemiPRO and gelPRO

ProductTypeDescriptionMfr#Part#AvailabilityPrice
CS-BLCUV to blue light converterCS-BLC6.317 399R 22,264.00
CS-WLCUV to visible light converterCS-WLC6.316 592R 7,514.10
