Representative Image

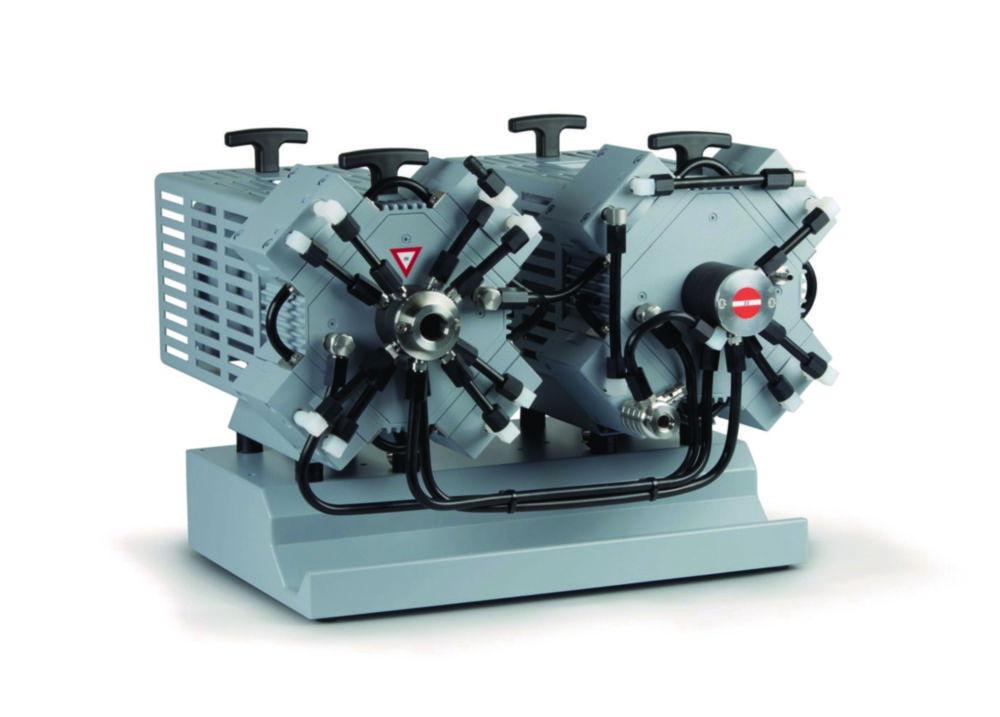

Vacuubrand ATEX Chemical Membrane Pump, Four-Stage, 230 V, 50 Hz

Specifications

HS Code #
84141089
Connection pressure side
KF DN 16
Connection suction side
KF DN 25
Depth
560 mm
Dimensions (WxDxH)
430 x 560 x 410 mm
Flow rate
8.1 m³/h
Height
410 mm
No. of stages
4
Plug type
stranded wire
Type
MV 10C EX
Ultimate vacuum
2 mbar

R 632,120.50

Inc. VAT

Available soon

Product description

The Vacuubrand ATEX Chemical Membrane Pump is a four-stage, high-performance vacuum pump designed for use in explosive atmospheres. With ATEX certification and superior chemical resistance, this pump is ideal for safe and reliable vacuum applications in demanding laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Type: Chemical membrane pump
  • Stages: Four-stage for higher vacuum levels
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Explosion Protection: ATEX-certified for flammable solvent use
  • Material: High chemical resistance for durability
  • Application: Ideal for ATEX-regulated labs and chemical handling

Note: An End User Declaration form must be completed after placing the order for this item.

Engineered to deliver consistent and secure operation, the Vacuubrand ATEX Chemical Membrane Pump supports laboratory processes with maximum protection and performance.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081R 2,150.50
PVC34.9 mm206860634.714 084R 5,717.80
PVC38.1 mm206860654.714 085R 6,653.90
PVC15.9 mm206860614.714 082R 2,504.70
PVC22.3 mm206860624.714 083R 3,466.10

More items to explore

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO

ProductPlug typeTypeMfr#Part#AvailabilityPrice
stranded wireMD 4C EX VARIO206969364.670 368R 382,611.90

Chemistry Diaphragm Vacuum Pump MD 4C EX VARIO +AK+EK

ProductPlug typeTypeMfr#Part#AvailabilityPrice
stranded wireMD 4C EX VARIO +AK+EK206969374.670 369R 487,050.30

Frequently asked questions

It is a four-stage, high-performance vacuum pump designed for use in explosive atmospheres. With ATEX certification and superior chemical resistance, this pump is ideal for safe and reliable vacuum applications in demanding laboratory environments.
