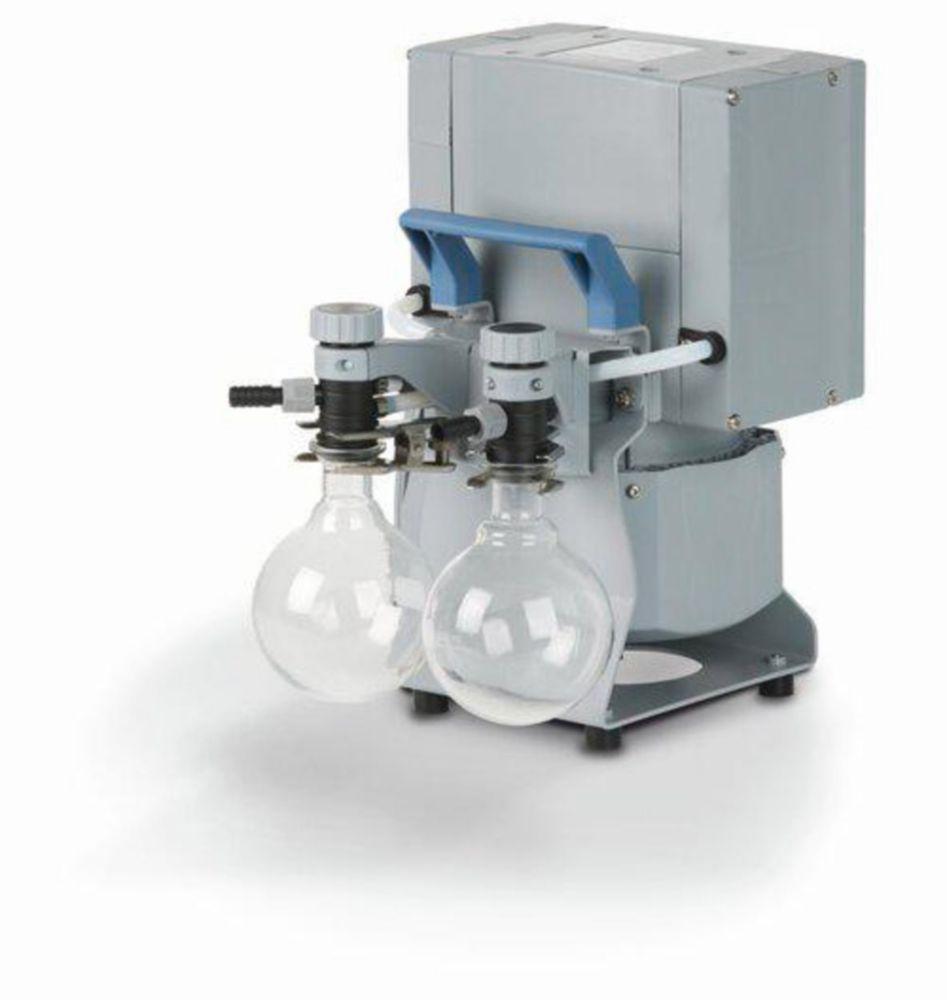

Vacuubrand Chemistry Membrane Pump ME 8C NT +2AK, One-Stage, 120 V, 60 Hz (without Mains Cable)

The Vacuubrand ME 8C NT +2AK is a robust, oil-free diaphragm pump designed for the continuous evacuation and pumping of corrosive gases and vapors. Operating at 120 V and 60 Hz, this one-stage, four-head pump delivers a maximum pumping speed of 4.6 cfm (7.8 m³/h) and achieves an ultimate vacuum of 70 mbar. The "+2AK" configuration includes inlet and outlet separators to protect the pump from particles, liquid droplets, and condensate, enhancing its durability and performance.

Key Features:

• Brand: Vacuubrand
• Type: Chemistry membrane pump
• Design: One-stage, four-head diaphragm pump for efficient vacuum generation
• Voltage: 120 V, 60 Hz
• Maximum Pumping Speed: 4.6 cfm (7.8 m³/h)
• Ultimate Vacuum: 70 mbar
• Noise Level: Approximately 45 dBA
• Weight: 16.7 kg
• Applications: Ideal for vacuum ovens, filtration processes, and general evacuation of corrosive gases and vapors

Export Control: Item is subject of export control

The ME 8C NT +2AK features chemically resistant fluoroplastics for all internal parts in contact with pumped media, ensuring durability and longevity. Its well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. The pump operates quietly with low vibration, making it an excellent choice for various laboratory applications.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Membrane Pump ME 8C NT +2AK, One-Stage, 120 V, 60 Hz used for?

It is a robust, oil-free diaphragm pump designed for the continuous evacuation and pumping of corrosive gases and vapors. Operating at 120 V and 60 Hz, this one-stage, four-head pump delivers a maximum pumping speed of 4.6 cfm (7.8 m³/h) and achieves an ultimate vacuum of 70 mbar. The "+2AK" configuration includes inlet and outlet separators to protect the pump from particles, liquid droplets, and condensate, enhancing its durability and performance.

2. Is this product suitable for vacuum ovens, filtration processes, and general evacuation of corrosive gases and vapors?

Yes. It is designed for vacuum ovens, filtration processes, and general evacuation of corrosive gases and vapors, and offers a voltage of 120 V, 60 Hz and a maximum pumping speed of 4.6 cfm (7.8 m³/h) to support this kind of work.

3. What voltage and maximum pumping speed does this product have?

It has a voltage of 120 V, 60 Hz, a maximum pumping speed of 4.6 cfm (7.8 m³/h) and an ultimate vacuum of 70 mbar.

4. What type and design does this product offer?

It offers chemistry membrane pump, one-stage, four-head diaphragm pump for efficient vacuum generation, approximately 45 dBA and good chemical resistance and vapor tolerance.
