Representative Image

Bohlender HT Laboratory Screw Joint GL 45 Ø 16.0 mm, PPS

Brand:Bohlender

For ext. tubing Ø

Specifications

Compare models
Colour
Black
For ext. tubing Ø
16.0 mm
Material
PPS
Thread
GL 45
UNSPSC
41121815

R 4,604.60

Inc. VAT

Available soon

Product description

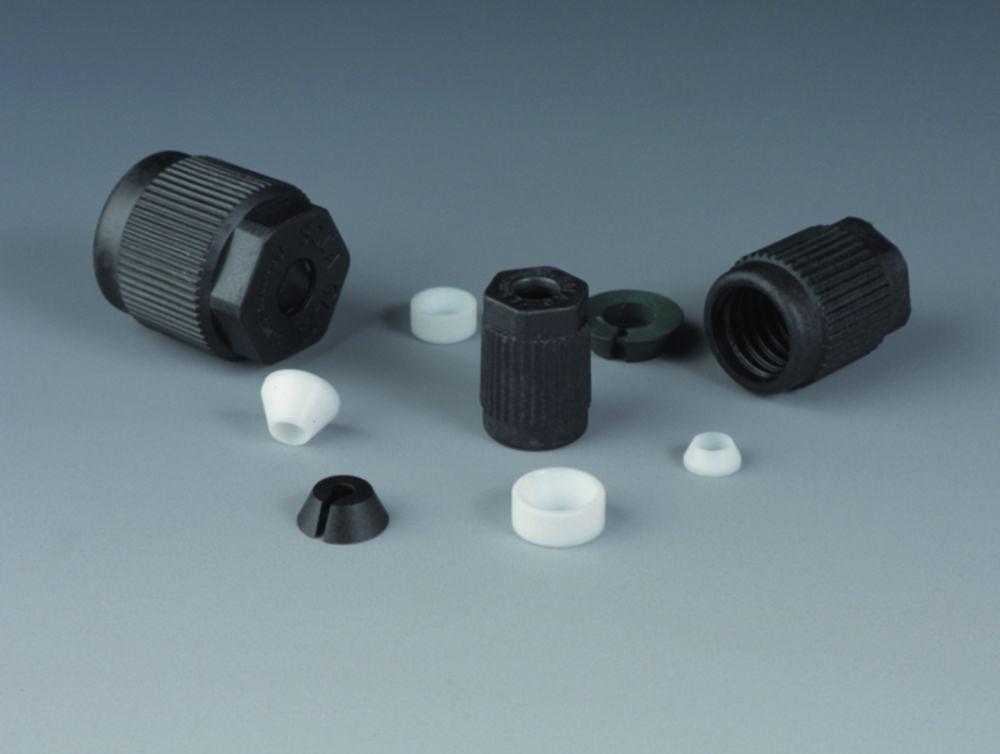

The Bohlender HT Laboratory Screw Joint GL 45 Ø 16.0 mm, PPS is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. This joint features a black screw cap made of PPS, with inner components including a V-ring (PPS), a tapered ring, and a sealing ring (both PTFE), as well as an O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). It offers excellent chemical resistance, with the medium being exposed only to PTFE. This screw joint is suitable for vacuum applications and can withstand temperatures ranging from -50°C to +250°C, with a pressure stability of up to 10 bar.

Key Features:

  • Brand: Bohlender
  • Material: PPS (Polyphenylene Sulfide), PTFE, FKM
  • Thread Size: GL 45
  • For Tubing Diameter: Ø 16.0 mm
  • Temperature Resistance: -50°C to +250°C
  • Pressure Stability: Up to 10 bar
  • Color: Black (screw cap)
  • Applications: Connecting probes, thermometers, dip tubes, or cables in reaction vessels

This HT laboratory screw joint is an essential component for laboratories requiring reliable and chemically resistant connections in their experimental setups.
