Representative Image

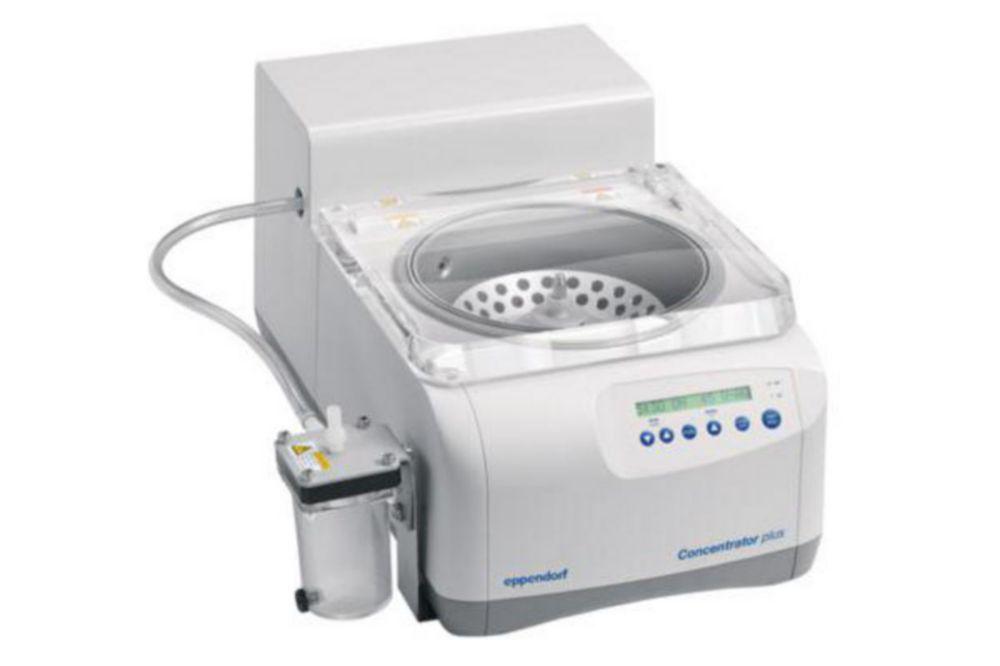

Eppendorf Concentrator Plus Complete System, with Integrated Membrane Vacuum Pump and 48 x 1.5/2.0 mL Fixed Angle Rotor

Brand:Eppendorf

Plug type

Specifications

Compare models
Depth
580 mm
Dimensions (WxDxH)
330 x 580 x 290 mm
Power supply frequency
50/60 Hz
Height
290 mm
Max. speed
1400 1/min
Max. voltage
230 V
Plug type
EU
Power supply
230 V, 50/60 Hz
Rated capacity
350 W
Speed
1,400 1/min

R 316,022.30

Inc. VAT

Available soon

Product description

The Eppendorf Concentrator Plus Complete System is a state-of-the-art evaporator designed for efficient sample concentration. This system includes an integrated membrane vacuum pump and a 48 x 1.5/2.0 mL fixed-angle rotor, making it ideal for high-throughput sample concentration in laboratory settings. It features a vapor condenser that purifies exhaust air by up to 85%, protecting users from unpleasant vapors. The system is designed to handle a variety of sample types with high efficiency and precision, making it an indispensable tool for molecular biology, biochemistry, and other scientific applications.

Key Features:

  • Brand: Eppendorf
  • System: Concentrator Plus Complete System with integrated membrane vacuum pump
  • Rotor: 48 x 1.5/2.0 mL fixed-angle rotor
  • Vapour Condenser: Purifies exhaust air by up to 85%, reducing unpleasant vapours
  • Efficiency: High-throughput sample concentration with precise control
  • Application: Ideal for molecular biology, biochemistry, and other scientific applications
  • Ease of Use: Integrated system for streamlined sample processing

Scope of Supply

  • Vacuum concentrator
  • Fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 mL)
  • Membrane vacuum pump

The Eppendorf Concentrator Plus Complete System provides a reliable, high-performance solution for concentrating samples, offering efficiency, versatility, and precision in laboratory environments.



Frequently Asked Questions

1. What is the Eppendorf Concentrator Plus Complete System, with Integrated Membrane Vacuum Pump and 48 x 1.5/2.0 mL Fixed Angle Rotor used for?

It is a state-of-the-art evaporator designed for efficient sample concentration. This system includes an integrated membrane vacuum pump and a 48 x 1.5/2.0 mL fixed-angle rotor, making it ideal for high-throughput sample concentration in laboratory settings. It features a vapor condenser that purifies exhaust air by up to 85%, protecting users from unpleasant vapors. The system is designed to handle a variety of sample types with high efficiency and precision, making it an indispensable tool for molecular biology, biochemistry, and other scientific applications.

2. Is this product suitable for molecular biology, biochemistry, and other scientific applications?

Yes. It is designed for molecular biology, biochemistry, and other scientific applications, and offers 48 x 1.5/2.0 mL fixed-angle rotor to support this kind of work.

3. What rotor does this product have?

It has 48 x 1.5/2.0 mL fixed-angle rotor.

4. What system and vapour condenser does this product offer?

It offers concentrator Plus Complete System with integrated membrane vacuum pump, purifies exhaust air by up to 85%, reducing unpleasant vapours, high-throughput sample concentration with precise control and integrated system for streamlined sample processing.

Downloads

Accessories

Accessories for Concentrator Plus™

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Spacer for using fixed angle rotors in sandwich mode4110480053013160059.776 534R 1,568.60
CombiSlide ® Adapter4110480058257060059.776 451R 13,004.20
Adapter for 0.2ml PCR tubes, for F-45-72-84110480054257230089.776 524R 834.90

Rotors for Concentrator plus™

ProductTypeDescriptionMfr#Part#AvailabilityPrice
F-45-16-20For 16 tubes 6.5 / 10 ml (20 x 42 ... 55 mm)54900430064.655 996R 21,125.50
F-45-48-11For 48 tubes 1.5 / 2.0 ml (11 x 41/11 x 47 mm)54900300019.776 465R 16,748.60
F-45-72-8For 72 tubes 0.5 ml (8 x 31 mm)54900340079.776 498R 16,748.60
F-40-18-19For 18 tubes 10 ml (19 x 66 mm)54900370069.776 493R 21,125.50
F-45-70-11For 70 tubes 1.5 / 2.0 ml (11 x 41/11 x 47 mm)54900320049.776 499R 16,748.60
F-50-8-18For 8 tubes 10 ... 18 ml (18 x 105 ... 128 mm)54900420004.655 995R 21,125.50
F-45-8-17For 8 conical tubes 15 ml (17 x 116 ... 123 mm)54900380029.776 490R 21,125.50
F-45-36-15For 36 tubes 3.0 / 5.0 ml (15 x 45 ... 48 mm)54900350039.776 492R 16,748.60
F-40-36-12For 36 tubes 1.5 ml (12 x 32 mm)54900400079.776 491R 21,125.50
A-2-VCFor MTP, PCR and Deepwell plates (128 x 86 x 27 mm)54900450099.776 496R 42,554.60
F-45-24-12For 24 tubes 5 ... 7 ml (12 x 67 ... 100 mm)54900360009.776 489R 16,748.60
F-35-6-30For 6 conical tubes 15 / 50 ml (17 / 30 x 116 ... 123 mm)54900470019.776 624R 21,125.50
F-35-8-24For 8 tubes 25 ml (24 x 86 ... 105 mm)54900390099.776 494R 21,125.50
F-50-8-16For 8 tubes 8 ... 12 ml (16 x 105 ... 120 mm)54900410039.776 463R 21,125.50
F-45-22-17For 22 tubes 5 ml (17 x 59.4 ... 67.4 mm)54900480086.315 536R 21,125.50

Compare similar models

Concentrator plus complete system with integr. membrane vacuum pump and 48 x 1,5/2,0 ml fixed angle rotor

Manufacturer P/N

5305000304

Part Number

9.776 620

Manufacturer

Eppendorf

Plug type

EU

Concentrator plus, cpl. system, rotor F-45-48-11 with integrated diaphragm vacuum pump 230V/50-60Hz UK plug

Manufacturer P/N

5305000363

Part Number

4.700 812

Manufacturer

Eppendorf

Plug type

UK

More items to explore

Vacuum concentrator, Concentrator plus™, with integrated membrane vacuum pump

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUConcentrator plus™53050005099.776 622R 307,976.90
UKConcentrator plus™53050005684.700 813R 307,976.90
