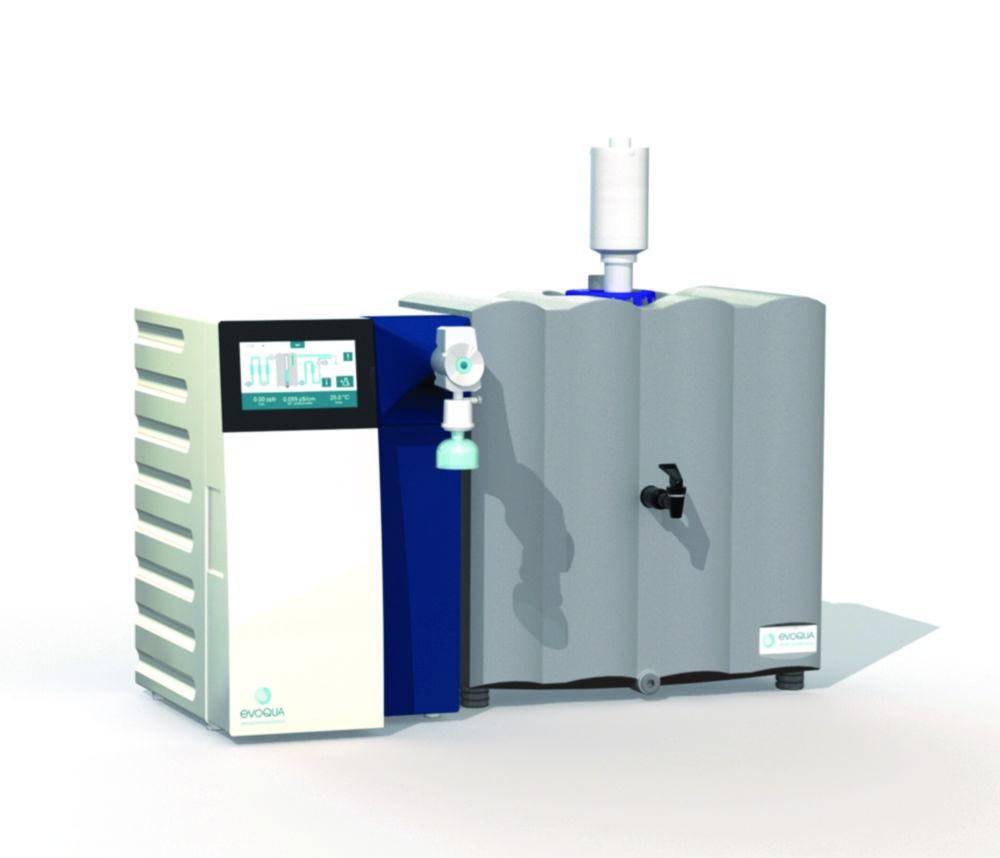

Evoqua Ultra Clear™ TP ED 10 TWF 60 UV UF TM

The Evoqua Ultra Clear™ TP ED 10 TWF 60 UV UF TM is a state-of-the-art ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates advanced purification technologies, including reverse osmosis (RO), deionization (DI), ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring, ensuring consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. An ion exchange module (DI) provides water with conductivity < 2 µS/cm from the storage tank. The system features user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

Key Features:

• Brand: Evoqua
• Model: Ultra Clear™ TP ED 10 TWF 60 UV UF TM
• Part Number: W3T276078
• Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
• TOC Level: < 3 ppb
• Endotoxin Content: < 0.001 EU/ml
• Flow Rate: Up to 2 L/min for ultrapure water
• Storage Tank: 60 L capacity for Type II water
• Recovery Rate: > 30% via built-in reverse osmosis
• Display: 7" multi-color touch screen for intuitive operation
• Connectivity: USB, SD card, printer, and Modbus interface
• Energy Saving: Includes energy saving mode
• Disinfection: User-guided disinfection mode
• Installation: Wall mounting possible for space-saving setup
• Dimensions (W x D x H): 340 x 550 x 535 mm (system), 560 x 310 x 770 mm (tank)
• Weight: 31.5 kg
• Power Supply: 100–240 V, 50/60 Hz

Scope of Supply:

• Ultrapure water system
• 1 set of modules and filters

Designed to provide reliable, ultrapure water suitable for demanding laboratory applications such as molecular biology, analytical chemistry, and microbiology, the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV UF TM ensures efficient, consistent performance with user-friendly operation.

Frequently Asked Questions

1. What is the Evoqua Ultra Clear™ TP ED 10 TWF 60 UV UF TM used for?

It is a state-of-the-art ultrapure water purification system designed for laboratories requiring both Type I and Type II water directly from tap water sources. This system integrates advanced purification technologies, including reverse osmosis (RO), deionization (DI), ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring, ensuring consistent high-quality water output. The built-in reverse osmosis system has a recovery rate of > 30%, promoting water conservation. An ion exchange module (DI) provides water with conductivity < 2 µS/cm from the storage tank. The system features user-guided disinfection and energy-saving modes, with optional wall mounting for flexible installation.

2. Is this product suitable for laboratories requiring both Type I and Type II water directly from tap water sources?

Yes. It is designed for laboratories requiring both Type I and Type II water directly from tap water sources, and offers a TOC level of < 3 ppb and an endotoxin content of < 0.001 EU/ml to support this kind of work.

3. What TOC level and endotoxin content does this product have?

It has a TOC level of < 3 ppb, an endotoxin content of < 0.001 EU/ml and a flow rate of up to 2 L/min for ultrapure water.

4. What water quality and connectivity does this product offer?

It offers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm), USB, SD card, printer, and Modbus interface, energy saving mode and user-guided disinfection mode.
