Representative Image

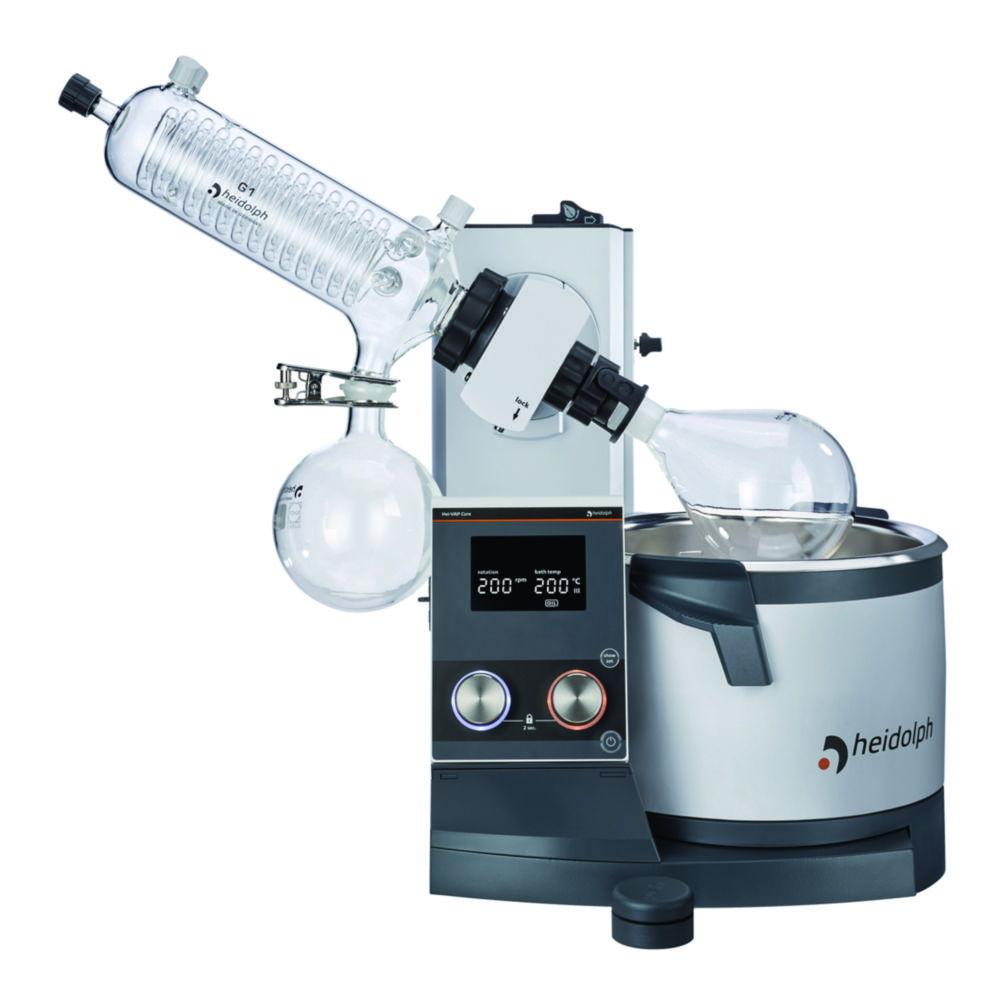

Heidolph Rotary Evaporator Hei-VAP Core HL G1, Hand Lift, with G1 Diagonal Cooler G1 (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

R 129,257.70

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G1 with hand lift and G1 diagonal cooler is an excellent choice for laboratories requiring efficient solvent evaporation with precise temperature control. The hand lift feature provides ease of operation, while the G1 diagonal cooler ensures optimal cooling performance during distillation. The EU-plug version is ideal for European electrical systems, ensuring compatibility across labs in Europe. This high-performance system is perfect for both small and medium-scale laboratory applications.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G1
  • Lift Mechanism: Hand lift for manual flask positioning and flexibility
  • Cooling System: G1 diagonal cooler for efficient temperature control
  • Plug Type: EU plug for European electrical systems
  • Display & Controls: Clear digital display for monitoring current values and separate button to show set values
  • Operation: Two separate knobs to adjust rotation speed and heating temperature with LED ring light indicators
  • Safety & Convenience: Activated lock feature to prevent inadvertent changes; residual heat indicator (>50 °C)
  • Ergonomics: Heating bath handles optimized for secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with innovative sealing
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
  • Additional Features: Standby button stops all functions and lifts flask on motor lift models; optional cable extension with detachable operating panel for use outside fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

Heidolph's Hei-VAP Core HL G1 rotary evaporator offers precise control, effective cooling, and ease of use, making it a top choice for advanced laboratory distillation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675R 44,553.30
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224R 7,767.10
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223R 4,731.10
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221R 3,314.30
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222R 3,617.90
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949R 12,776.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220R 2,605.90
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660R 4,857.60
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172R 4,326.30

Compare similar models

Rotary Evaporator Hei-VAP Core HL G1 hand lift with G1 diagonal cooler G1 (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1, Hand Lift, with G1 Diagonal Cooler G1 (EU-Plug)

R 129,257.70

Inc. VAT

Manufacturer P/N

571-01100-00

Part Number

4.666 085

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B, Hand Lift (EU-Plug)

R 135,709.20

Inc. VAT

Manufacturer P/N

571-01110-00

Part Number

4.666 090

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-CH Hand Lift (CH-Plug)

R 129,257.70

Inc. VAT

Manufacturer P/N

571-01100-04

Part Number

4.666 127

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-UK Hand Lift (UK-Plug)

R 135,709.20

Inc. VAT

Manufacturer P/N

571-01110-03

Part Number

4.666 112

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1-UK Hand Lift (UK-Plug)

R 129,257.70

Inc. VAT

Manufacturer P/N

571-01100-03

Part Number

4.666 107

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G1B-CH Hand Lift (CH-Plug)

R 135,709.20

Inc. VAT

Manufacturer P/N

571-01110-04

Part Number

4.666 132

Manufacturer

Heidolph

Glassware

Coated
