Representative Image

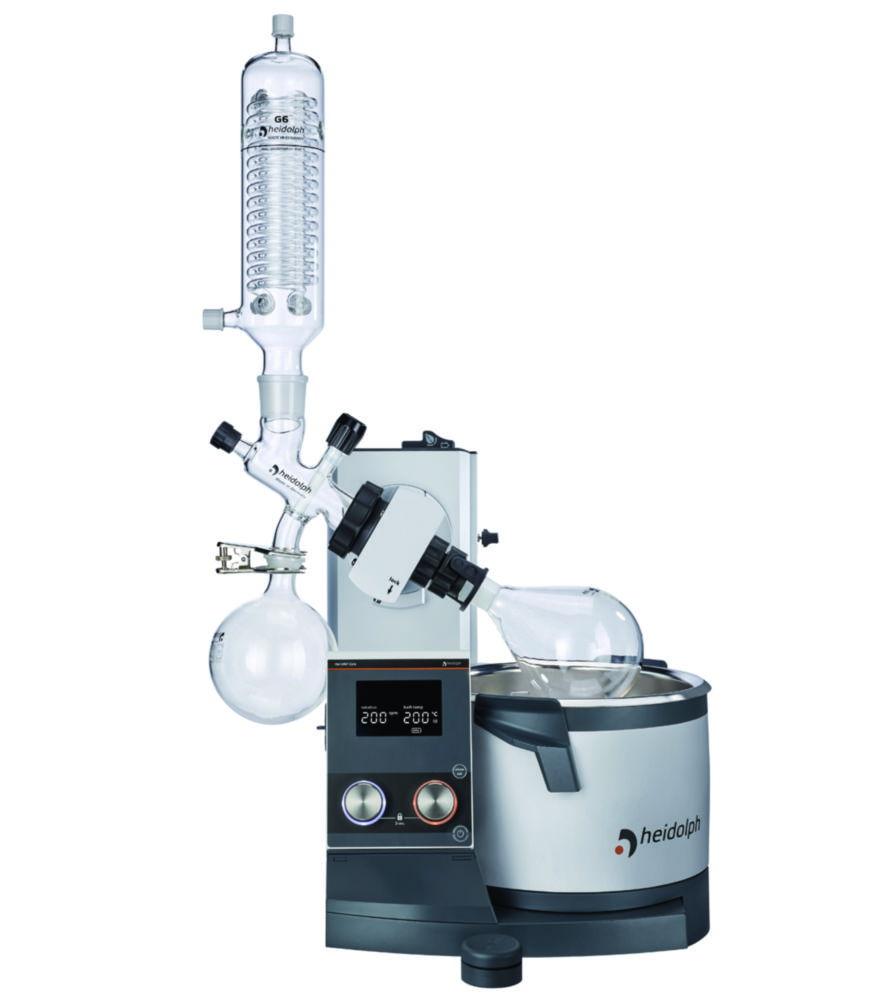

Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

R 170,926.80

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G6 with hand lift is a highly efficient and reliable solution for solvent distillation in laboratories. It features a G6 vertical glassware configuration, offering excellent performance for large-volume evaporation tasks. The manual hand lift provides easy control and adjustment for precise operation.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G6
  • Lift Mechanism: Manual hand lift for precise adjustment
  • Glassware Configuration: G6 vertical condenser for high-volume evaporation
  • Plug Type: EU plug
  • Display: Clear digital display for monitoring current values with a separate button for set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: (Motor lift models only) Stops all functions and lifts flask out of the heating bath
  • Ergonomics: Heating bath handles are ergonomically shaped for secure handling
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation enabled by innovative sealing technology
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable control panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core HL G6 rotary evaporator is perfect for laboratories requiring efficient, high-volume solvent removal with user-friendly operation and dependable performance.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675R 44,553.30
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665R 36,507.90

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224R 7,767.10
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223R 4,731.10
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221R 3,314.30
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222R 3,617.90
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949R 12,776.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220R 2,605.90
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660R 4,857.60
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172R 4,326.30

Compare similar models

Rotary Evaporator Hei-VAP Core HL G6 hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift (EU-Plug)

R 170,926.80

Inc. VAT

Manufacturer P/N

571-01600-00

Part Number

4.666 089

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-UK Hand Lift (UK-Plug)

R 181,097.40

Inc. VAT

Manufacturer P/N

571-01610-03

Part Number

4.666 116

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug)

R 181,097.40

Inc. VAT

Manufacturer P/N

571-01610-04

Part Number

4.666 136

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-CH Hand Lift (CH-Plug)

R 170,926.80

Inc. VAT

Manufacturer P/N

571-01600-04

Part Number

4.666 131

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-UK Hand Lift (UK-Plug)

R 170,926.80

Inc. VAT

Manufacturer P/N

571-01600-03

Part Number

4.666 111

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B Hand Lift (EU-Plug)

R 181,097.40

Inc. VAT

Manufacturer P/N

571-01610-00

Part Number

4.666 094

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is a highly efficient and reliable solution for solvent distillation in laboratories. It features a G6 vertical glassware configuration, offering excellent performance for large-volume evaporation tasks. The manual hand lift provides easy control and adjustment for precise operation.
