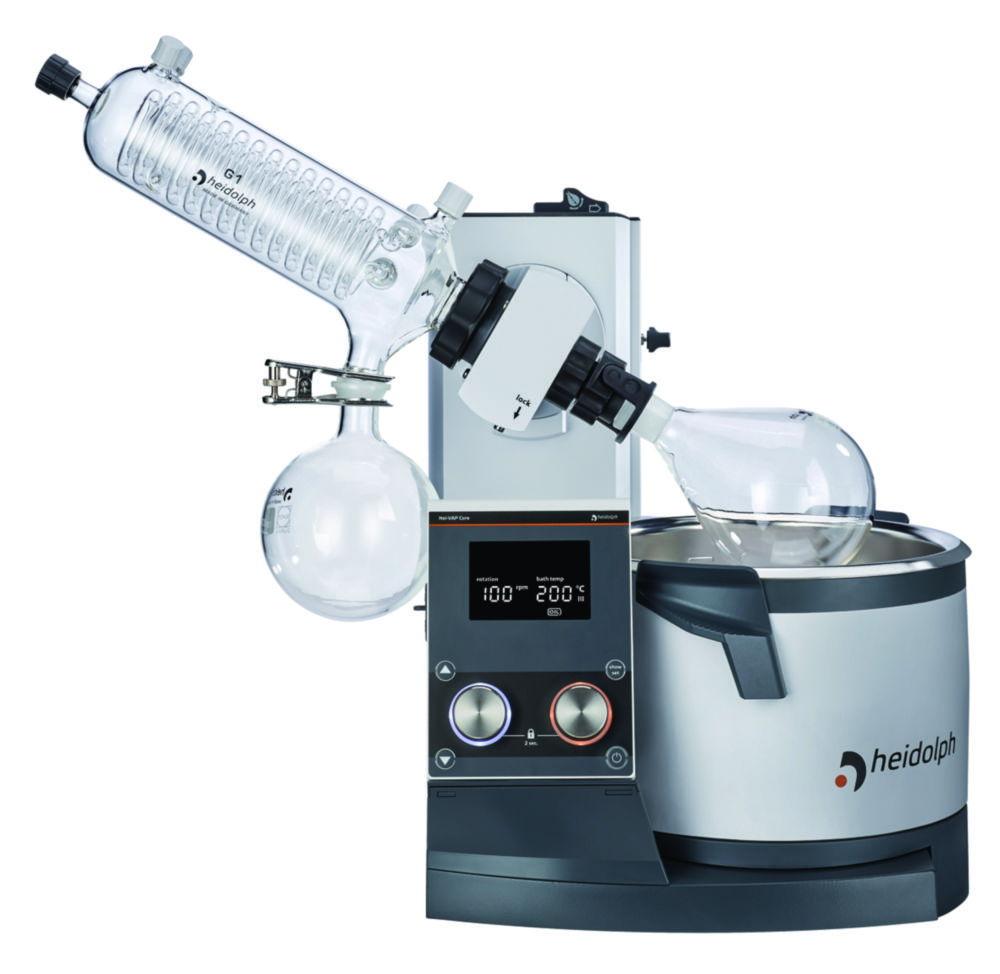

Heidolph Rotary Evaporator Hei-VAP Core ML G1B Motor Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

R 143,526.90

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1B with Motor Lift is built for reliable and efficient solvent evaporation in laboratory settings. Featuring a motorized lift system with a lifting speed of 25 mm/s and a maximum immersion depth of 155 mm, this unit ensures precise and hands-free adjustment of the evaporating flask. The G1B diagonal glassware configuration and EU plug compatibility make it ideal for European labs handling distillation, concentration, and solvent recovery processes.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1B with motor lift
  • Lift Mechanism: Motorized lift with 25 mm/s lifting speed and max immersion depth of 155 mm
  • Glassware Configuration: G1B diagonal condenser for efficient solvent distillation
  • Heating Bath Capacity: Up to 6 liters (recommended filling volume: 2.2 – 4.5 liters)
  • Heating Power: 1300 W; Temperature Range: 20 °C to 210 °C
  • Rotation Speed: Adjustable from 10 to 280 rpm
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate knobs for speed and temperature with LED ring light indicators
  • Safety: Activated lock to prevent unintentional changes; residual heat warning when bath exceeds 50 °C
  • Standby Function: Stops operation and lifts flask from bath automatically
  • Design: Ergonomically optimized handles; grease-free sealing system for smooth, low-maintenance performance
  • Adjustability: Tilt angle adjustable from 20° to 80°
  • Connectivity: PTFE ventilation cap without ground joints; optional replenishment valve and cable extension for remote operation panel placement
  • Plug Type: EU plug (230 V, 50/60 Hz)

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-liter receiving flask
  • 1-liter evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G1B is an advanced rotary evaporator solution for laboratories needing dependable, precise, and ergonomically designed equipment for solvent evaporation.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675R 44,553.30
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665R 36,507.90

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224R 7,767.10
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223R 4,731.10
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221R 3,314.30
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222R 3,617.90
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949R 12,776.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220R 2,605.90
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660R 4,857.60
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172R 4,326.30
