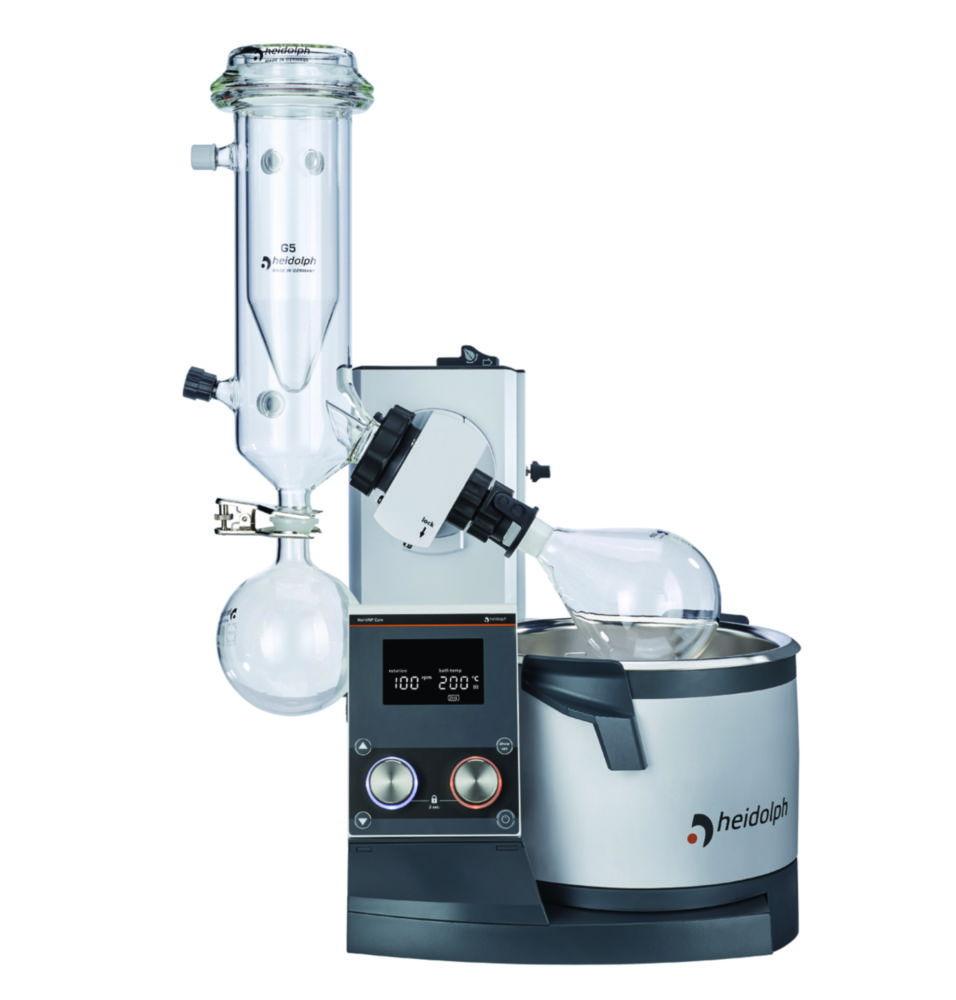

Heidolph Rotary Evaporator Hei-VAP Core ML G5, Motor Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
EU

R 164,045.20

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G5 with motor lift is designed for efficient solvent evaporation in laboratory settings. Equipped with a motor lift, it provides ease of operation by automating the lifting and lowering of the evaporator flask. The EU-plug version ensures compatibility with European electrical systems, making it an excellent choice for labs in Europe. With the G5 glassware configuration, it offers precise control over distillation processes for both small and large-scale operations.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G5
  • Lift Mechanism: Motor lift for smooth operation and flask handling
  • Glassware Configuration: G5 for optimized distillation efficiency
  • Plug Type: EU plug for European electrical systems
  • Application: Ideal for efficient solvent recovery and distillation in laboratories
  • Display: Clear digital display for monitoring current values, with a separate button for set values
  • Controls: Two separate knobs for adjusting rotation speed and heating temperature, featuring LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator activates when temperature exceeds 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
  • Ergonomics: Heating bath includes ergonomically optimized handles for secure and comfortable grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with innovative sealing technology
  • Ventilation Cap: PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

Heidolph's Hei-VAP Core ML G5 motor lift rotary evaporator combines precision, ease of use, and excellent performance for advanced laboratory distillation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675R 44,553.30
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665R 36,507.90

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224R 7,767.10
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223R 4,731.10
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221R 3,314.30
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222R 3,617.90
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949R 12,776.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220R 2,605.90
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660R 4,857.60
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172R 4,326.30

Compare similar models

Rotary Evaporator Hei-VAP Core ML G5 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5, Motor Lift (EU-Plug)

R 164,045.20

Inc. VAT

Manufacturer P/N

572-01500-00

Part Number

4.666 098

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B, Motor Lift (EU-Plug)

R 177,277.10

Inc. VAT

Manufacturer P/N

572-01510-00

Part Number

4.666 103

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5-UK Motor Lift (UK-Plug)

R 164,045.20

Inc. VAT

Manufacturer P/N

572-01500-03

Part Number

4.666 120

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B-UK Motor Lift (UK-Plug)

R 177,277.10

Inc. VAT

Manufacturer P/N

572-01510-03

Part Number

4.666 125

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5B-CH Motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B-CH Motor Lift (CH-Plug)

R 177,277.10

Inc. VAT

Manufacturer P/N

572-01510-04

Part Number

4.666 145

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug)

R 164,045.20

Inc. VAT

Manufacturer P/N

572-01500-04

Part Number

4.666 140

Manufacturer

Heidolph

Glassware

Without coating

More items to explore

Rotary Evaporators Hei-VAP Core, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
Rotary Evaporator Hei-VAP Core HL G5B hand lift (EU-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B Hand Lift (EU-Plug)
EUG5B571-01510-004.666 093R 169,434.10
Rotary Evaporator Hei-VAP Core HL G5B-UK hand lift (UK-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-UK Hand Lift (UK-Plug)
UKG5B571-01510-034.666 115R 169,434.10
Rotary Evaporator Hei-VAP Core HL G5-UK hand lift (UK-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5-UK Hand Lift (UK-Plug)
UKG5571-01500-034.666 110R 156,227.50
Rotary Evaporator Hei-VAP Core HL G5-CH hand lift (CH-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5-CH Hand Lift (CH-Plug)
CHG5571-01500-044.666 130R 156,227.50
Rotary Evaporator Hei-VAP Core HL G5B-CH hand lift (CH-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-CH Hand Lift (CH-Plug)
CHG5B571-01510-044.666 135R 169,434.10
Rotary Evaporator Hei-VAP Core HL G5 hand lift (EU-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5 Hand Lift (EU-Plug)
EUG5571-01500-004.666 088R 156,227.50

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
Hei-VAP Core set Basic Hei-VAP Core HL G3, vacuum pump Rotavac Valve Tec Tubing set
Heidolph Hei-VAP Core Set Basic Hei-VAP Core HL G3, Vacuum Pump Rotavac Valve Tec, Tubing Set
EUHei-VAP Core Basic571-34300-004.669 055R 222,817.10
Hei-VAP Basic Package CH-plug
Heidolph Scientific Hei-VAP Basic Package CH-plug
CHHei-VAP Core Basic571-34300-044.703 311R 222,817.10
Hei-VAP Basic Package UK-plug
Heidolph Scientific Hei-VAP Basic Package UK-plug
UKHei-VAP Core Basic571-34300-034.703 310R 222,817.10

Frequently asked questions

It is designed for efficient solvent evaporation in laboratory settings. Equipped with a motor lift, it provides ease of operation by automating the lifting and lowering of the evaporator flask. The EU-plug version ensures compatibility with European electrical systems, making it an excellent choice for labs in Europe. With the G5 glassware configuration, it offers precise control over distillation processes for both small and large-scale operations.
