Representative Image

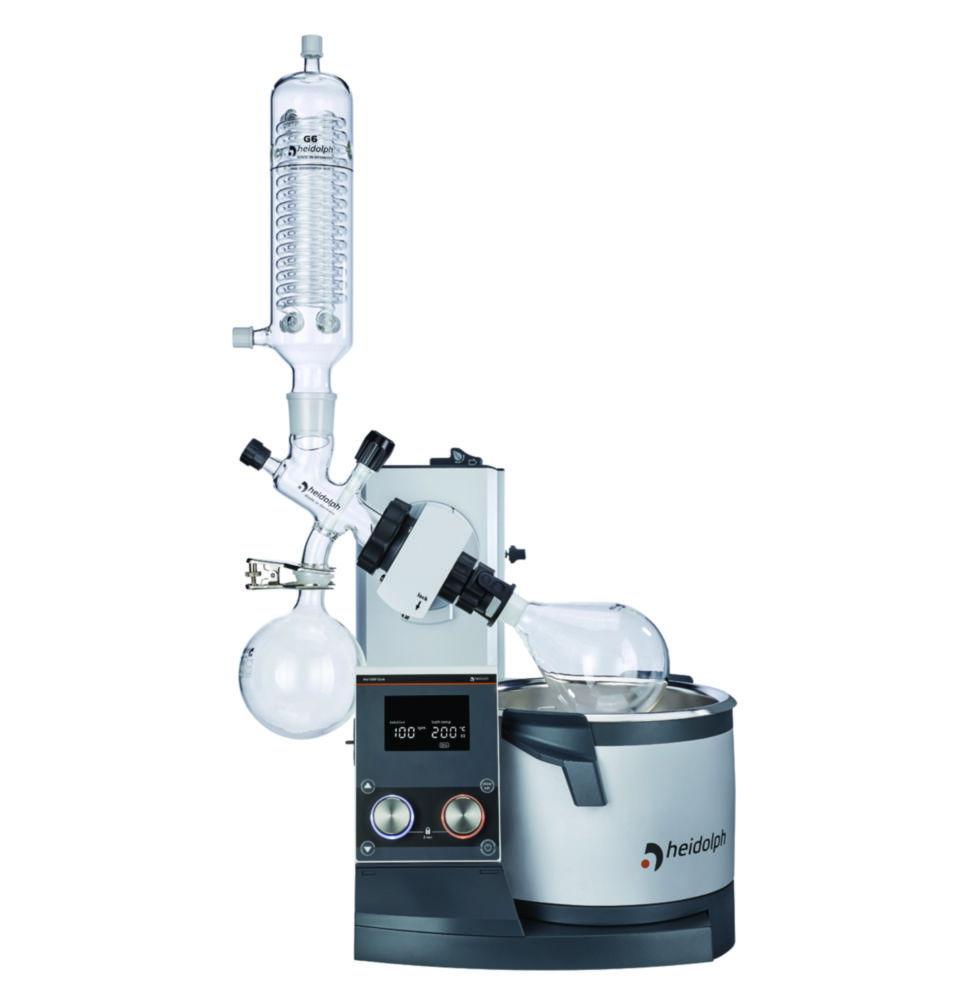

Heidolph Rotary Evaporator Hei-VAP Core ML G6B-UK Motor Lift (UK-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
UK

R 188,915.10

Inc. VAT

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G6B-UK Motor Lift (UK-Plug) delivers reliable, high-precision solvent evaporation for laboratory use. With its advanced motor lift system and UK-Plug compatibility, this model offers effortless height adjustment and superior control. Ideal for research and industrial labs, it supports a variety of evaporation tasks including distillation and concentration, ensuring consistent performance and long-term durability.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G6B-UK with motor lift (UK-Plug)
  • Application: Solvent evaporation, distillation, and concentration in lab environments
  • Lift Mechanism: Motor lift for automated vertical adjustment
  • Compatibility: Configured with UK-Plug for regional use
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate operating knobs for rotation speed and heating temperature with LED ring light for activity indication
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
  • Ergonomics: Heating bath handles optimized for secure grip
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Sealing Technology: Grease-free operation thanks to innovative sealing
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is an essential choice for laboratories needing accurate, high-quality evaporation with convenient motorized operation.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675R 44,553.30
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224R 7,767.10
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223R 4,731.10
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221R 3,314.30
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222R 3,617.90
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949R 12,776.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220R 2,605.90
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660R 4,857.60
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172R 4,326.30

Compare similar models

Rotary Evaporator Hei-VAP Core ML G6B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B-UK Motor Lift (UK-Plug)

R 188,915.10

Inc. VAT

Manufacturer P/N

572-01610-03

Part Number

4.666 126

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G6 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6, Motor Lift (EU-Plug)

R 178,769.80

Inc. VAT

Manufacturer P/N

572-01600-00

Part Number

4.666 099

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G6-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6-UK Motor Lift (UK-Plug)

R 178,769.80

Inc. VAT

Manufacturer P/N

572-01600-03

Part Number

4.666 121

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G6B-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B-CH Motor Lift (CH-Plug)

R 188,915.10

Inc. VAT

Manufacturer P/N

572-01610-04

Part Number

4.666 146

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G6B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6B Motor Lift (EU-Plug)

R 188,915.10

Inc. VAT

Manufacturer P/N

572-01610-00

Part Number

4.666 104

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G6-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G6-CH Motor Lift (CH-Plug)

R 178,769.80

Inc. VAT

Manufacturer P/N

572-01600-04

Part Number

4.666 141

Manufacturer

Heidolph

Glassware

Without coating

Frequently asked questions

It delivers reliable, high-precision solvent evaporation for laboratory use. With its advanced motor lift system and UK-Plug compatibility, this model offers effortless height adjustment and superior control. Ideal for research and industrial labs, it supports a variety of evaporation tasks including distillation and concentration, ensuring consistent performance and long-term durability.
