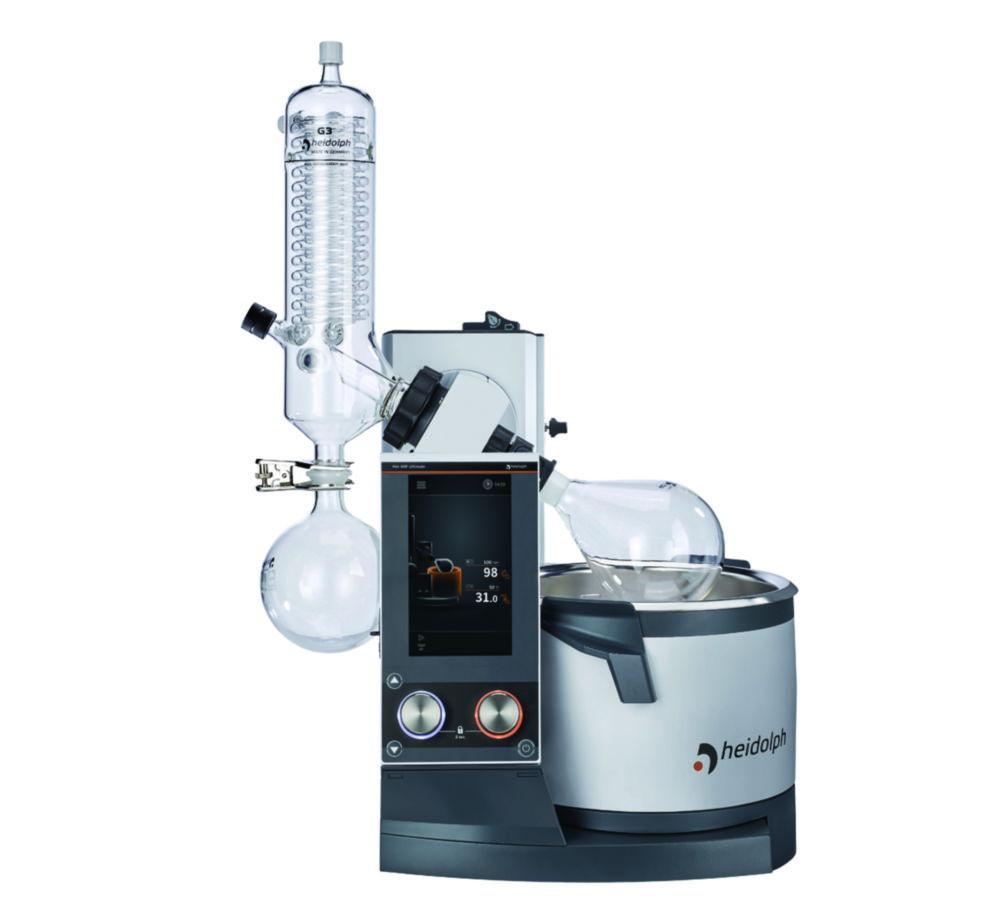

Name: Heidolph Rotary Evaporator Hei-VAP Ultimate ML/G3, with Motor Lift
Brand: Heidolph
SKU: 4.669 023
Price: 7698.1 EUR
Availability: BackOrder

Product overview

The Heidolph Rotary Evaporator Hei-VAP Ultimate ML/G3 with motor lift is engineered to provide high-efficiency evaporation for laboratory applications. This model features a motorized lift that ensures smooth and precise height adjustments, enhancing the overall user experience. With reliable performance and advanced control features, this rotary evaporator is ideal for a range of chemical and biological research applications where consistent and effective evaporation is required.

Key Features:

Brand: Heidolph
Model: Hei-VAP Ultimate ML/G3 with motor lift
Application: Ideal for laboratory evaporation in chemical and biological research
Motor Lift: Motorized lift for smooth operation and precise height adjustment
Control: Advanced control features for optimal evaporation performance
Packaging: Includes motor lift for efficient operation

The Heidolph Rotary Evaporator is the perfect solution for laboratories requiring reliable and efficient evaporation systems with precise control and motorized lifting capabilities.

Frequently Asked Questions

1. What is the Heidolph Rotary Evaporator Hei-VAP Ultimate ML/G3, with Motor Lift used for?

It is engineered to provide high-efficiency evaporation for laboratory applications. This model features a motorized lift that ensures smooth and precise height adjustments, enhancing the overall user experience. With reliable performance and advanced control features, this rotary evaporator is ideal for a range of chemical and biological research applications where consistent and effective evaporation is required.

2. Is this product suitable for laboratory evaporation in chemical and biological research?

Yes. It is designed for laboratory evaporation in chemical and biological research, and offers motorized lift for smooth operation and precise height adjustment and advanced control features for optimal evaporation performance to support this kind of work.

3. What motor lift and control does this product have?

It has motorized lift for smooth operation and precise height adjustment and advanced control features for optimal evaporation performance.

4. How is this product supplied?

It is supplied as includes motor lift for efficient operation.

Product Specifications

HS Code #84194000
CondenserVertical
Cooling surface1400 cm²
Depth477 mm
Dimensions (WxDxH)739 x 477 x 887 mm
Power supply frequency50/60 Hz
GlasswareWithout coating
Height887 mm
LiftElectrical
Lifting path155 mm
Max. speed280 1/min
Max. temperature210 °C
Max. voltage230 V
Max. volume bath4.5 l
Min. speed10 1/min
Min. temperatureRT
Plug typeEU
Power supply230 V, 50/60 Hz
Speed10 ... 280 1/min
TemperatureRT ... 210 °C
TypeG3
Type of auxiliary energyMains connection
UNSPSC41104804
Width739 mm
