Representative Image

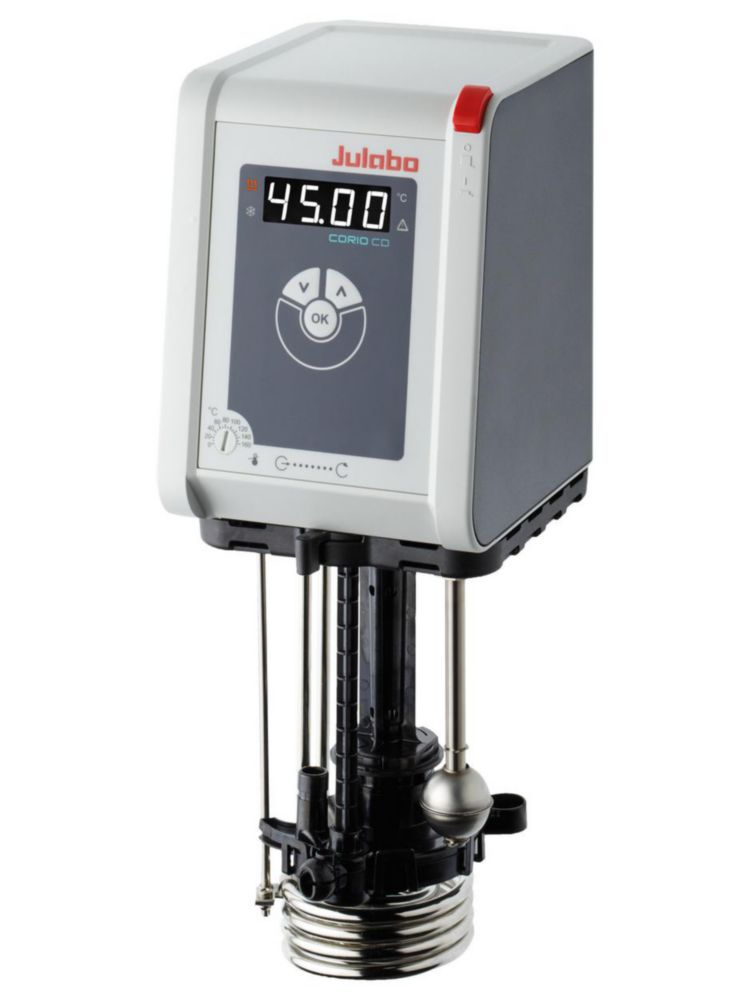

Julabo Immersion Thermostat Corio CD +20 To +150°C, 115V 60Hz With US-Plug, 13.2 X 16 X 36.2 Cm

Brand:JULABO

Power supply frequency

Specifications

Compare models
Depth
160 mm
Dimensions (WxDxH)
132 x 160 x 366 mm
Power supply frequency
60 Hz
Heating capacity
2 kW
Height
366 mm
Immersion depth
166 mm
IP code
IP 21
Max. delivery pressure
0.35 bar
Max. immersion depth
166 mm
Max. temperature
150 °C

R 38,506.60

Inc. VAT

Available soon

Product description

The Julabo Immersion Thermostat Corio CD +20 To +150°C, 115V 60Hz With US-Plug, 13.2 X 16 X 36.2 Cm is a high-performance immersion circulator designed for precise temperature control of bath tanks up to 50 litres and external applications. With a powerful, continuously variable pump, a bright LED display, and whisper-quiet operation, this thermostat delivers exceptional ease of use in a wide range of laboratory heating applications. Featuring pump changeover between internal and external circulation, a USB interface, and a built-in timer of 0 to 999 minutes, it is classified as Class III (FL) according to DIN 12876-1 and offers outstanding temperature stability of ±0.03°C.

Key Features:

  • Brand: Julabo
  • Type: Corio CD
  • Temperature Range: +20°C To +150°C
  • Temperature Stability: ±0.03°C
  • Heating Capacity: 2 kW
  • Power Supply: 115V, 60Hz
  • Plug Type: US
  • Dimensions (Width X Depth X Height): 132 X 160 X 366mm
  • Immersion Depth: 166mm
  • Max. Delivery Pressure: 0.35 Bar
  • IP Code: IP 21
  • Display: LED
  • Operation: Membrane Keyboard
  • Timer: 0 To 999 Minutes
  • Weight: 2.6 Kg
  • Classification: Class III (FL) According To DIN 12876-1
  • USB Interface: Yes

This immersion thermostat is an essential laboratory instrument for professionals requiring reliable, precise, and efficient temperature control in research and analytical settings.



Frequently Asked Questions

1. What is the Julabo Immersion Thermostat Corio CD +20 To +150°C, 115V 60Hz With US-Plug, 13.2 X 16 X 36.2 Cm used for?

It is a high-performance immersion circulator designed for precise temperature control of bath tanks up to 50 litres and external applications. With a powerful, continuously variable pump, a bright LED display, and whisper-quiet operation, this thermostat delivers exceptional ease of use in a wide range of laboratory heating applications. Featuring pump changeover between internal and external circulation, a USB interface, and a built-in timer of 0 to 999 minutes, it is classified as Class III (FL) according to DIN 12876-1 and offers outstanding temperature stability of ±0.03°C.

2. Is this product suitable for precise temperature control of bath tanks up to 50 litres and external applications?

Yes. It is designed for precise temperature control of bath tanks up to 50 litres and external applications, and offers a temperature stability of ±0.03°C and a heating capacity of 2 kW to support this kind of work.

3. What temperature stability and heating capacity does this product have?

It has a temperature stability of ±0.03°C, a heating capacity of 2 kW and a power supply of 115V, 60Hz.

4. What type and temperature range does this product offer?

It offers corio CD, +20°C To +150°C, US and IP 21.

Accessories

Stainless steel bath tanks for immersion thermostats CORIO™ C/CD

ProductTypeCapacityMfr#Part#AvailabilityPrice
B53.5 ... 5 l99034054.658 017R 11,688.60
B3326 ... 33 l99034334.658 022R 63,857.20
B2717 ... 27 l99034274.658 021R 27,830.00
B1914 ... 19 l99034194.658 020R 21,808.60
B3935 ... 41 l99034394.658 023R 67,424.50
B1713 ... 17 l99034174.658 019R 21,985.70
B139 ... 13 l99034134.658 018R 19,936.40

Heating Circulators Accessories

ProductDescriptionForMfr#Part#AvailabilityPrice
USB interface cable 2 m type A - BCD99001104.658 012R 1,163.80
Assembly cooling coil for counter-cooling with tap waterCD-BT5/19/27, CD-B5/13/17/19/27/33/3999701004.658 025R 4,908.20
Stand attachment with rod 200 x 12 mm dia.C, CD, CP99700224.658 024R 2,934.80
Installation cooling coil for counter-cooling with tap waterC, C-BT5/9/19/27, C-B5/13/17/19/27, CD, CP99701014.658 026R 4,984.10
Bath cover with built-in heat exchangerBC4, BC699702404.658 031R 16,293.20
Bath cover with built-in heat exchangerBC1299702424.658 032R 19,000.30
Bath attachment clamp for wall thickness up to 30 mmC, CD, CP99704204.658 048R 1,973.40

Compare similar models

Immersion thermostat CORIO CD +20...+150°C, 115V 60Hz with US-plug 13.2 x 16 x 36.2 cm

Manufacturer P/N

9012000.02

Part Number

6.495 222

Manufacturer

JULABO

Power supply frequency

60 Hz

Immersion thermostat CORIO CD +20...+150°C, 230V 50Hz 13.2 x 16 x 36.2 cm
Available soon
Julabo Immersion Thermostat CORIO CD, +20 to +150 °C

R 36,685.00

Inc. VAT

Manufacturer P/N

9012000

Part Number

4.658 066

Manufacturer

JULABO

Power supply frequency

50 Hz
