Representative image only

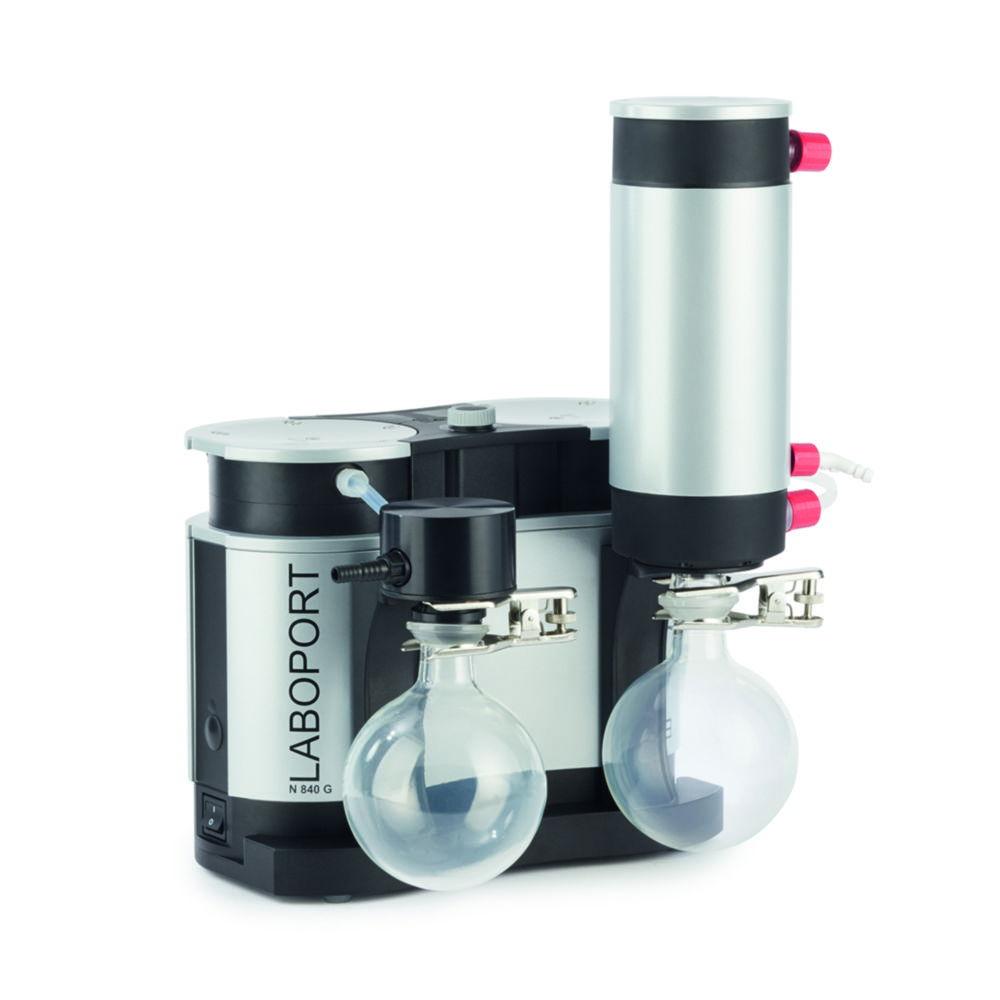

LABOPORT® Vacuum pump system SH 840 G 6mbar, 0.1 bar g, motor IP 30, 34 l/min, 240 V 50/60 Hz, 340x416x274mm
Sold by: Labex Pty Ltd
Available Soon
Part #: 4.684 034Manufacturer #: 325238/315994
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Vacuum pump systems consisting of chemically resistant diaphragm vacuum pump, base plate, inlet separator and outlet condensor for solvent recovery. The PTFE pump head and the PTFE-coated diaphragm make the vacuum systems suitable for aggressive / corrosive gases and vapours.
- 100 % oil-free transfer
- High level of vapor and condensate compatibility
- Integrated gas ballast valve
- 3-color status display (in operation / stand-by / error)
- Integrated speed control
- Start against ultimate vacuum of the pump
- Modular expandable
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 8 ... 9,5 mm
- Depth274 mm
- Dimensions (WxDxH)340 x 274 x 416 mm
- Flow rate34 l/min
- Power supply frequency50/60 Hz
- Height416 mm
- IP codeIP 30
- Max. permitted ambient temp.40 °C
- Max. voltage240 V
- Min. permitted ambient temperature5 °C
- Min. voltage100 V
- Plug typeEU
- Power supply100 ... 240 V, 50/60 Hz
- Rated capacity100 W
- TypeSH 840 G
- Type of auxiliary energyMains connection
- Ultimate vacuum6 mbar
- UNSPSC40151502
- Weight14.1 kg
- Width340 mm
Just add items to your shopping cart and select “Instant Quote”
