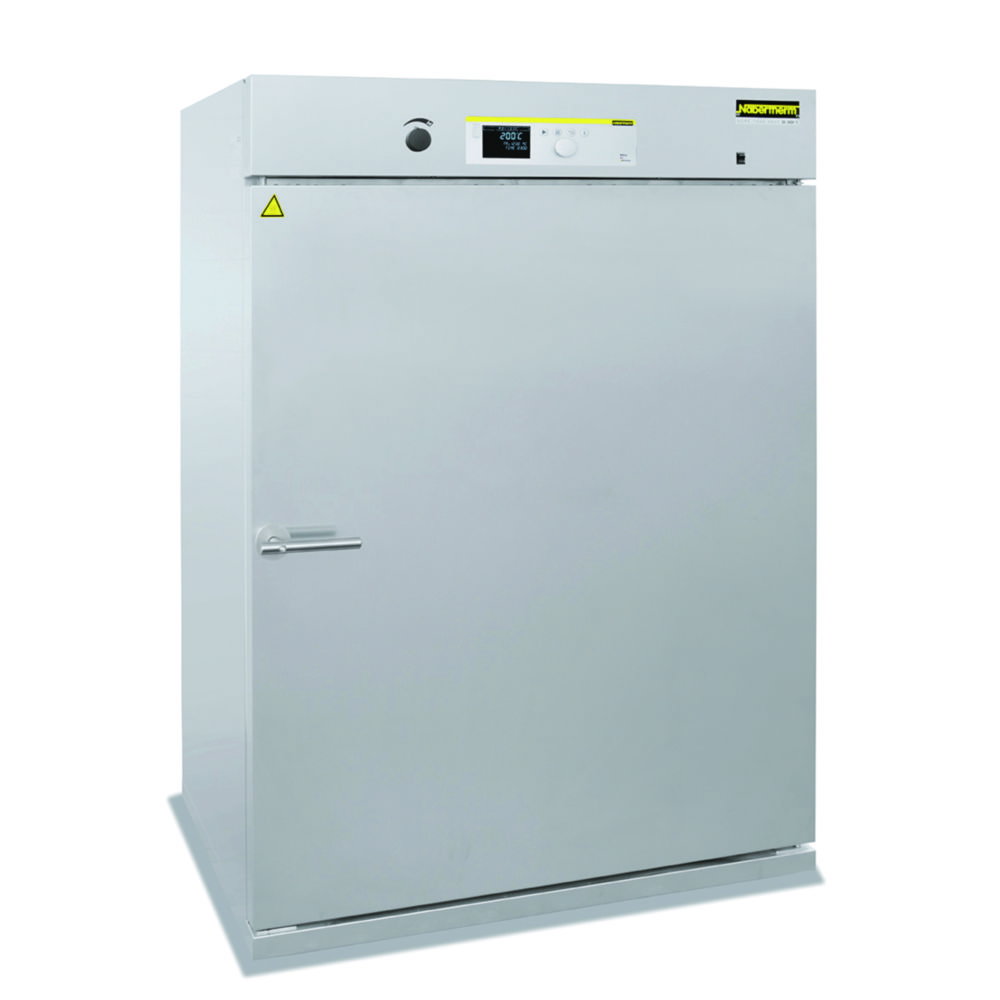

Nabertherm Drying Oven TR 240 With Controller B510 Tmax, 300°C And, 240 L Volume
Sold by: Labex Pty Ltd
Available Soon
Part #: 4.719 862Manufacturer #: TR-246LUA
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Nabertherm Drying Oven TR 240 With Controller B510 Tmax, 300°C And, 240 L Volume is designed for controlled heating, cooling and temperature workflows. Controller B 510 with touch panel, 5 programs, 4 steps, USB interface.
Key Features:
- Brand: Nabertherm
- Product Type: Drying Oven
- Model: TR 240
- Capacity: 240 L
- Interface: Controller B 510 with touch panel, 5 programs, 4 steps, USB interface
- Application: controlled heating, cooling and temperature workflows
This Nabertherm Drying Oven is suitable for users needing reliable performance for controlled heating, cooling and temperature workflows.
Product Specifications
- Depth int.560 mm
- Ext. dim. (WxDxH)1,000 x 850 x 980 mm
- Ext. depth850 mm
- Ext. height980 mm
- Ext. width1000 mm
- Power supply frequency50/60 Hz
- Height int.600 mm
- Int. Dim. (WxDxH)750 x 560 x 600 mm
- Int. width750 mm
- Material interiorStainless steel 1.4301
- Max. no. of inserts7
- Max. temperature300 °C
- Max. voltage240 V·1/N/PE
- Min. voltage220 V·1/N/PE
- Nominal capacity240 l
- Plug typeEU
- Power supply220 ... 240 V·1/N/PE, 50/60 Hz
- Rated capacity3.4 kW
- Temperature300 °C
- TypeTR 240/ B 510
- Type of auxiliary energyMains connection
- UNSPSC41104510
- Weight165 kg
- Safety Data Sheethttps://sw.llg.de/search?search=4719862
Variant products
Products related to this item (2)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
TR-126LUA | 4.719 859 | Nabertherm Drying Oven TR 120 With Controller B510 Tmax, 300°C And, 120 L Volume | EU | TR 120/ B 510 | 133 887,60 | |||
TR-066LUA | 4.719 856 | Nabertherm Drying Oven TR 60 With Controller B510 Tmax, 300°C And, 60 L Volume | EU | TR 60/B 510 | 110 080,30 |
