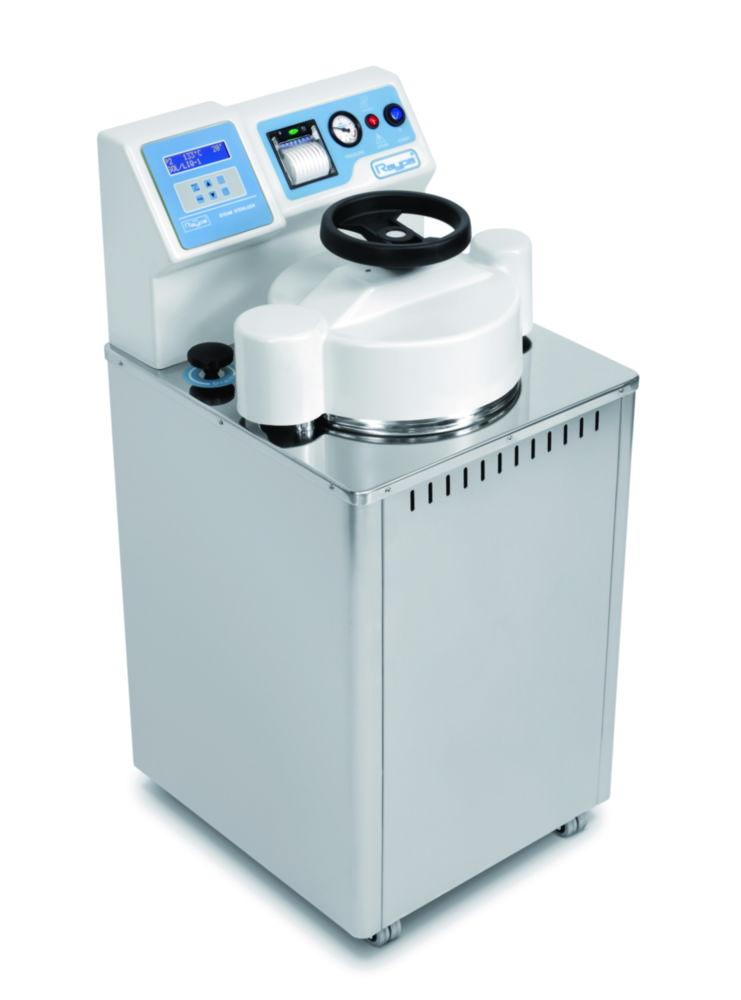

Automatic autoclaves AES-110
Representative image only

Automatic autoclaves AES-110

Sold by: Labex Pty Ltd
Available Soon
Part #: 9.851 896Manufacturer #: AES-110
Estimated shipping time:Contact us via live chat or via contact us page

R 332 543,20

See the available (5) variant products

Product overview

These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.

  • On request also available with with vacuum pump and steam generator

  • Agar modus (40 °C to 80 °C)

  • RS 232 interface

  • Timer

  • Programmable auto-start (24 h)

  • Fully automatic functions

  • Case and lid shrouding are AISI 304 stainless steel

  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel

  • Electrical heating with protected heating elements in the interior of the chamber

  • Safety pressure valve

  • Safety thermostat

  • Automatic steam controlled by microprocessor

  • Manual valves for emptying the sterilisation chamber and for draining steam

Product Specifications

  • HS Code #84192000
  • Dimensions (WxH)400 x 850 mm
  • Ext. dim. (WxDxH)610 x 700 x 1,435 mm
  • Ext. depth700 mm
  • Ext. height1435 mm
  • Ext. width610 mm
  • Power supply frequency50/60 Hz
  • Heating capacity4500 W
  • Height int.850 mm
  • Int. Ø400 mm
  • LoadingVertical
  • Max. temperature134 °C
  • Max. voltage400 V
  • Min. temperature100 °C
  • Nominal capacity110 l
  • Power supply400 V, 50/60 Hz
  • Temperature100 ... 134 °C
  • TypeAES-110
  • Type of auxiliary energyMains connection
  • Weight122 kg
Downloads
  • Raypa Stericlav Autoclaves Brochure Data SheetDownload
