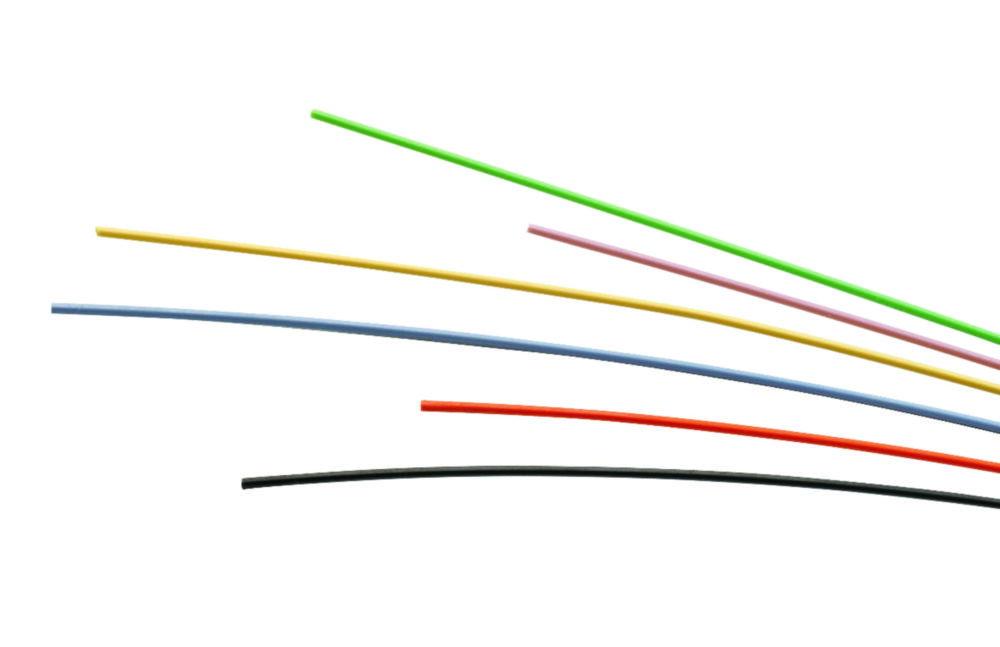

Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length
Product overview
The Trajan Scientific PEEK Tubing in yellow, measuring 360 µm OD x 150 µm (0.006") ID x 10' length, is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
Key Features:
- Brand: Trajan Scientific
- Material: PEEK (Polyether Ether Ketone)
- Outer Diameter: 360 µm
- Inner Diameter: 150 µm (0.006")
- Length: 10 feet (3 meters)
- Color: Yellow
- Maximum Pressure: 2000 psi (138 bar)
- pH Range: 2 to 14
- Maximum Operating Temperature: 100°C
- Applications: Suitable for HPLC, LCMS, and automation systems
This tubing is designed to ensure reproducibility in chromatographic flow rates and results, thanks to its smooth internal surface and tight tolerances. Its bio-inert and bio-compatible nature makes it suitable for a wide range of analytical applications.
Frequently Asked Questions
1. What is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length used for?
It is engineered for high-performance liquid chromatography (HPLC) and other analytical applications. Constructed from high-quality PEEK (Polyether Ether Ketone), this tubing offers exceptional chemical resistance and mechanical strength, making it ideal for use in demanding laboratory environments.
2. Is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length suitable for HPLC, LCMS, and automation systems?
Yes. It is designed for HPLC, LCMS, and automation systems, and offers an outer diameter of 360 µm and an inner diameter of 150 µm (0.006") to support this kind of work.
3. What outer diameter and inner diameter does the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length have?
It has an outer diameter of 360 µm, an inner diameter of 150 µm (0.006") and a length of 10 feet (3 meters), and is supplied under manufacturer part number 1304006002-10F.
4. What is the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length made from and what features does it include?
It is made from PEEK (Polyether Ether Ketone). It also offers yellow and tube length 3 m.
5. How does the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length compare with the SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m)?
For tubing applications, the Trajan Scientific PEEK Tubing, Yellow 360 µm OD x 150 µm (0.006") ID x 10' Length is differentiated by material PEEK (Polyether Ether Ketone) and outer diameter 360 µm. The SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m) from SCAT is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
Product Specifications
- HS Code #39173200
- ColourYellow
- Ext. Ø0.36 mm
- Int. Ø0.15 mm
- Length3 m
- MaterialPEEK
- Max. temp. resistance100 °C
- Operating pressure138 bar
- Temperature resistance100 °C
- UNSPSC41105108
