Representative Image

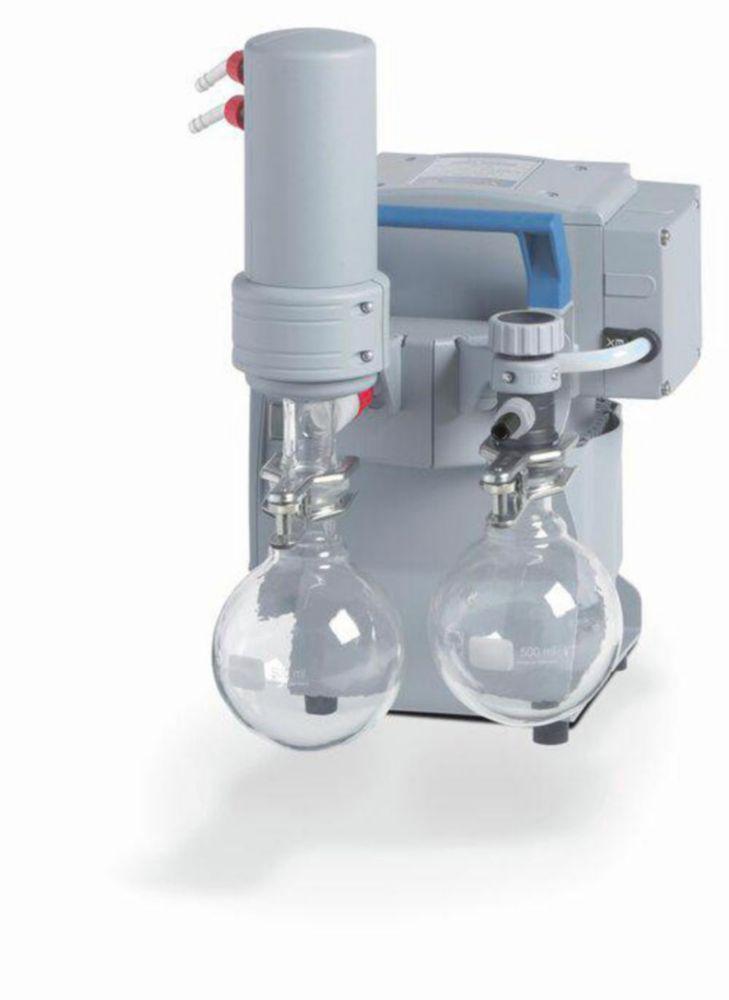

Vacuubrand Chemical-Membrane Pump MZ 2C NT + AK + EK, CH Mains Cable 230 V, 50/60 Hz

Plug type

Specifications

Compare models
HS Code #
84141089
Connection pressure side
DN 8-10 mm
Connection suction side
DN 8-10 mm
Depth
326 mm
Dimensions (WxDxH)
243 x 326 x 402 mm
Flow rate
2.0 m³/h
Height
402 mm
No. of stages
2
Plug type
CH
Type
MZ 2C NT + AK + EK
Ultimate vacuum
7 mbar

Alternative in-stock items

R 115 595,70

Inc. VAT

Available soon

Product description

The Vacuubrand Chemical-Membrane Pump MZ 2C NT + AK + EK is a high-performance, oil-free diaphragm pump system designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.

Key Features:

  • Brand: Vacuubrand
  • Model: MZ 2C NT + AK + EK
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 2 m³/h (50 Hz), 1.4 cfm (60 Hz)
  • Ultimate Vacuum: 7 mbar (5 torr), 12 mbar (9 torr) with gas ballast
  • Number of Stages: 2
  • Number of Heads: 2
  • Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
  • Coolant Connections: 2 x hose nozzle DN 6–8 mm
  • Rated Motor Power: 0.18 kW
  • Rated Motor Speed: 1500 rpm (50 Hz), 1800 rpm (60 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x B x H): 326 mm x 243 mm x 402 mm
  • Weight: 14.2 kg
  • Noise Level: 45 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C

This vacuum system is ideal for applications such as rotary evaporation, vacuum concentrators, and filtration in chemical, biological, and pharmaceutical laboratories. The included glass separator (AK) effectively retains particles and liquid droplets, ensuring clean and efficient operation. The EK condenser enables near-100% solvent recovery, promoting environmental sustainability and cost efficiency.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081R 2 150,50
PVC34.9 mm206860634.714 084R 5 717,80
PVC38.1 mm206860654.714 085R 6 653,90
PVC15.9 mm206860614.714 082R 2 504,70
PVC22.3 mm206860624.714 083R 3 466,10

Compare similar models

Chemical-membrane pump MZ 2C NT + AK + EK, CH mais cable 230 V, 50/60 Hz

Manufacturer P/N

20732601

Part Number

9.880 923

Manufacturer

VACUUBRAND​

Plug type

CH

Chemical-membrane pump MZ 2C NT + AK + EK, CEE mais cable 230 V, 50/60 Hz

Manufacturer P/N

20732600

Part Number

6.234 067

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry vacuum system MZ 2C NT +AK+EK, certification (NRTL): C/US, 230 V/50-60 Hz, UK/IN mains cable

Manufacturer P/N

20732602

Part Number

4.670 445

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry vacuum system MZ 2C NT +AK+EK, two stage, Certification (NRTL): C/US, 100-115 V/50-60 Hz, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732603

Part Number

4.670 446

Manufacturer

VACUUBRAND​

Plug type

US
