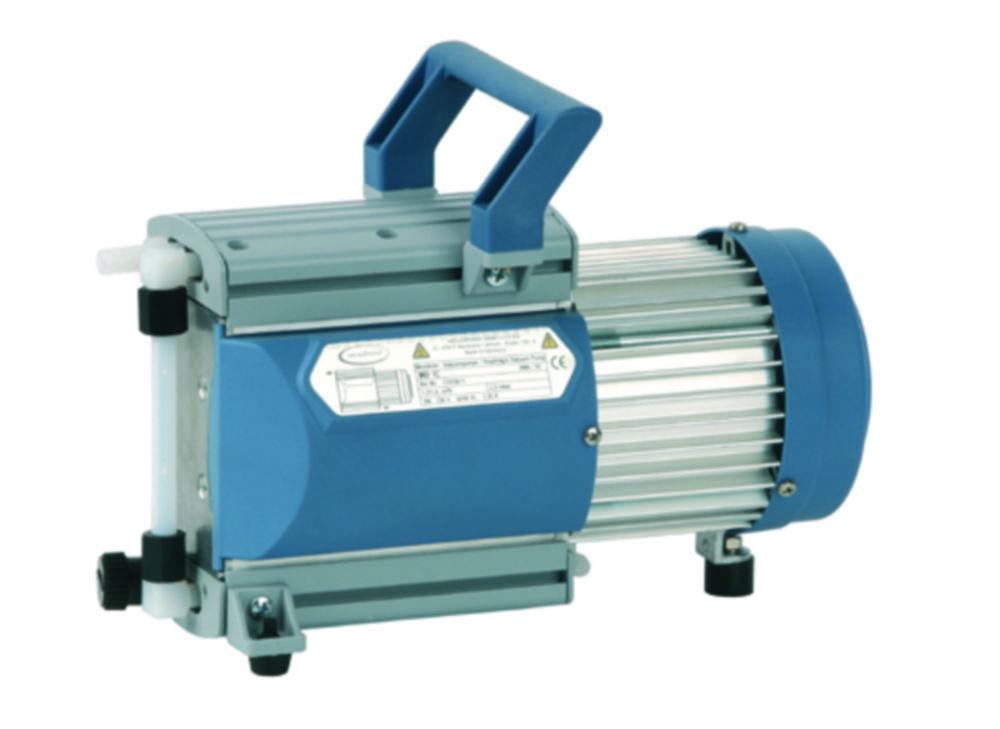

Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power

The Vacuubrand MD 1C Chemistry Diaphragm Pump is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

Key Features:

• Brand: VACUUBRAND
• Model: MD 1C
• Type: Chemistry diaphragm pump
• Number of Stages: 3
• Ultimate Vacuum: 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast
• Maximum Pumping Speed: 1.3 m³/h (50 Hz); 0.88 cfm (60 Hz)
• Power Supply: 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz
• Plug Type: CH (Swiss) / CN (China)
• Dimensions: 142 mm (W) x 338 mm (D) x 223 mm (H)
• Weight: 6.9 kg
• Materials in Contact with Media: Chemically resistant fluoroplastics
• Protection Class: IP 40
• Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MD 1C features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power used for?

It is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

2. Is the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power suitable for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications?

Yes. It is designed for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications, and offers number of stages of 3 and an ultimate vacuum of 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast to support this kind of work.

3. What number of stages and ultimate vacuum does the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power have?

It has number of stages of 3, an ultimate vacuum of 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast and a maximum pumping speed of 1.3 m³/h (50 Hz); 0.88 cfm (60 Hz), and is supplied under manufacturer part number 20696601.

4. What type and plug type does the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power offer?

It offers chemistry diaphragm pump, CH (Swiss) / CN (China), chemically resistant fluoroplastics and IP 40.

5. How does the Vacuubrand Chemistry Diaphragm Pump MD 1C, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power compare with the KNF Diaphragm Liquid Pump Liquiport NF 300 FT.18 RC, Chemically-Resistant, 104 x 188 x 160mm from KNF?

For Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications, the VACUUBRAND model is the better choice, offering number of stages of 3, an ultimate vacuum of 2 mbar (1.5 torr); 4 mbar (3 torr) with gas ballast and a maximum pumping speed of 1.3 m³/h (50 Hz); 0.88 cfm (60 Hz). The KNF model offers dimensions of 104 x 188 x 160mm as an alternative, while the VACUUBRAND model's chemistry diaphragm pump and CH (Swiss) / CN (China) help make it a strong fit for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications.
