Representative Image

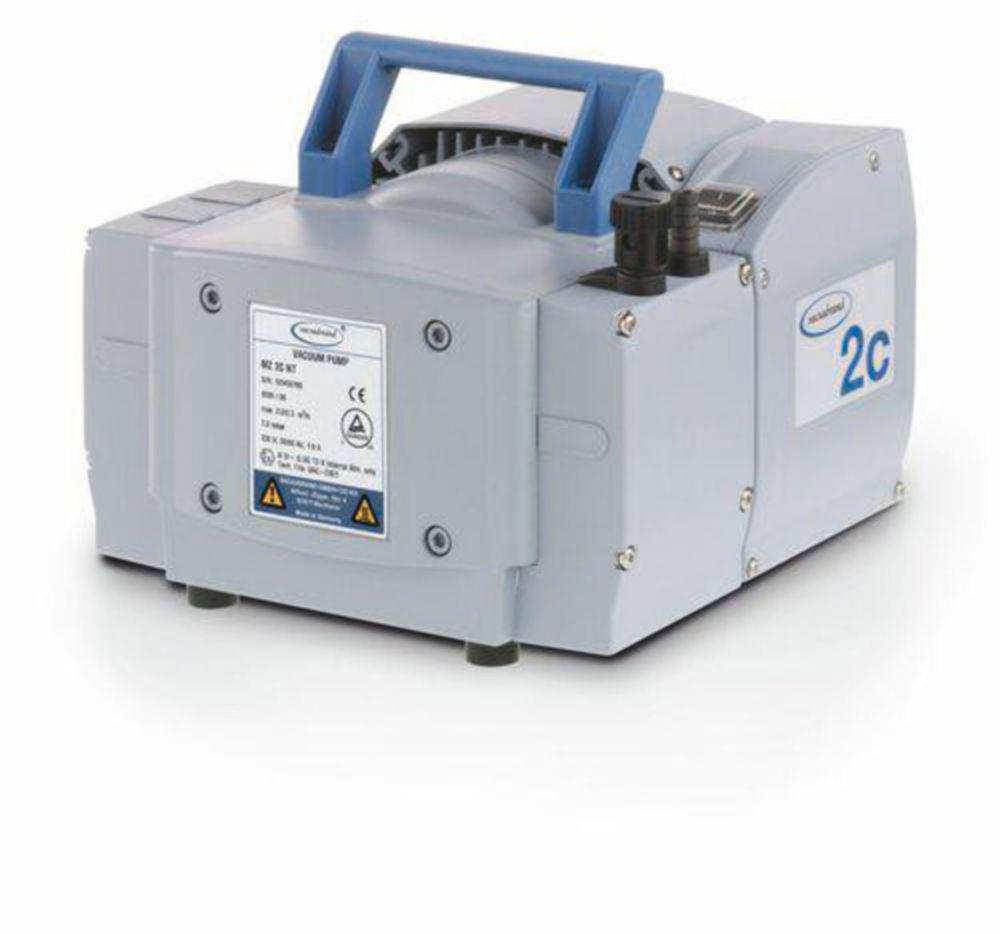

Vacuubrand Chemistry Diaphragm Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz, CH Plug

Plug type

Specifications

Compare models
Depth
243 mm
Dimensions (WxDxH)
243 x 243 x 198 mm
Flow rate
2.0 m³/h
Height
198 mm
No. of stages
2
Plug type
CH
Type
MZ 2C NT
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
UNSPSC
40151502

Alternative in-stock items

R 74,432.60

Inc. VAT

Available soon

Product description

The Vacuubrand MZ 2C NT is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a Swiss (CH) plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: MZ 2C NT
  • Voltage/Frequency: 230 V / 50 Hz
  • Maximum Pumping Speed: 2.0 m³/h
  • Ultimate Vacuum: 7 mbar (5 torr)
  • Ultimate Vacuum with Gas Ballast: 12 mbar (9 torr)
  • Number of Stages: 2
  • Number of Heads: 2
  • Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
  • Rated Motor Power: 0.18 kW
  • Rated Motor Speed: 1500 min⁻¹ (50 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x W x H): 243 x 243 x 198 mm
  • Weight: 11.1 kg
  • Noise Level: 45 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Certifications: NRTL certified
  • ATEX Conformity: II 3G IIC T3 X Internal Atm. only

This pump is ideal for applications such as vacuum filtration, rotary evaporation, and degassing in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476R 7,615.30
MD 4C NT40151502206968706.239 489R 14,522.20
ME 4 NT, MZ 2 NT40151502206968609.880 902R 4,604.60
ME 4C NT40151502206968649.880 906R 4,427.50
MZ 2D NT40151502206968639.880 904R 4,604.60
MV 2 NT / MD 4 NT40151502206968619.880 905R 7,362.30
ME 8 NT40151502206968629.880 903R 6,072.00
ME 8C NT40151502206968679.880 907R 8,602.00

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081R 2,150.50
PVC34.9 mm206860634.714 084R 5,717.80
PVC38.1 mm206860654.714 085R 6,653.90
PVC15.9 mm206860614.714 082R 2,504.70
PVC22.3 mm206860624.714 083R 3,466.10

Compare similar models

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CH

Manufacturer P/N

20732301

Part Number

9.880 899

Manufacturer

VACUUBRAND​

Plug type

CH

Chemistry diaphragm pump MZ 2C NT two-stage, 230 V~ 50 Hz plug CEE

Manufacturer P/N

20732300

Part Number

9.880 898

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry membrane pump MZ 2C NT two-step, 230 V~ 50 Hz plug UK

Manufacturer P/N

20732302

Part Number

6.267 265

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry diaphragm pump MZ 2C NT two stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732303

Part Number

4.670 434

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stockR 31,852.70
UKME 1C207211029.880 936R 31,852.70
CHME 1C207211019.880 935R 31,852.70
USME 1C207211039.880 937R 31,852.70

Diaphragm vacuum pumps, chemistry design, MZ 2C VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMZ 2C VARIO select207324504.670 437R 183,045.50
CHMZ 2C VARIO select207324514.670 438R 183,045.50
USMZ 2C VARIO select207324534.670 439R 183,045.50

Frequently asked questions

It is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a Swiss (CH) plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.
