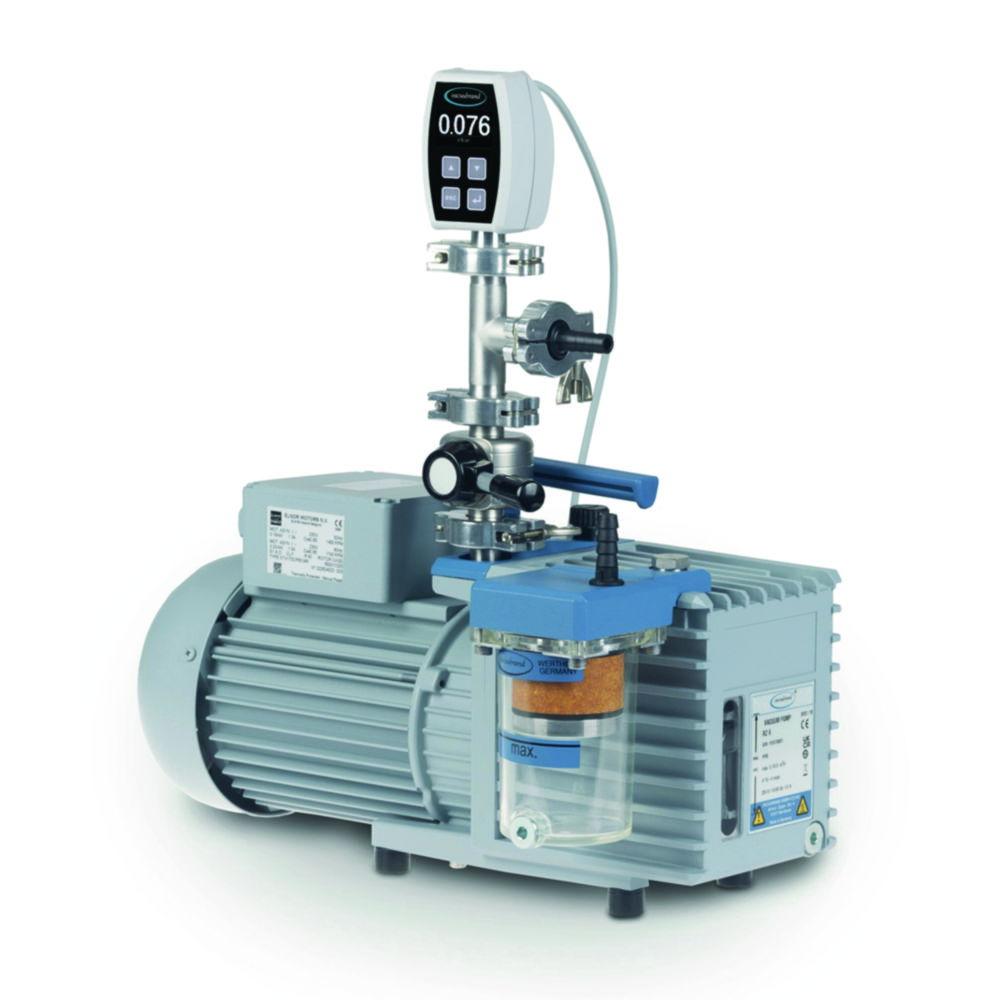

Vacuubrand Rotary Vane Pump Package RZ 6 with Oil Mist Filter, Butterfly Valve VS 16, and Vacuum Gauge VACUU·VIEW Extended, 230 V/50–60 Hz, CEE Mains
Product overview
The Vacuubrand Rotary Vane Pump Package RZ 6 is a comprehensive solution designed for efficient and reliable vacuum applications in laboratory settings. This package includes the robust two-stage RZ 6 rotary vane pump, an oil mist filter FO, butterfly valve VS 16, and the VACUU·VIEW extended vacuum gauge, all configured for 230 V/50–60 Hz with CEE mains compatibility.
Key Features:
- Brand: Vacuubrand
- Pumping Speed: 5.7 m³/h at 50 Hz
- Ultimate Vacuum: 2 × 10−3 mbar
- Noise Level: 50 dBA
- Weight: 17.8 kg
- Dimensions (L × W × H): 420 × 230 × 240 mm
- Included Components: RZ 6 pump, oil mist filter FO, butterfly valve VS 16, VACUU·VIEW extended vacuum gauge
- Applications: Ideal for laboratory and process applications requiring low ultimate vacuum at medium to increased gas flow rates
Scope of Supply:
- Rotary vane pump
- Oil mist filter FO
- Butterfly valve VS 16
- VACUU·VIEW extended vacuum gauge
- Manual
This package offers a compact and lightweight design, making it an excellent choice for various laboratory vacuum applications.
Frequently Asked Questions
1. What is the Vacuubrand Rotary Vane Pump Package RZ 6 with Oil Mist Filter, Butterfly Valve VS 16, and Vacuum Gauge VACUU·VIEW Extended, 230 V/50–60 Hz, CEE Mains used for?
It is a comprehensive solution designed for efficient and reliable vacuum applications in laboratory settings. This package includes the robust two-stage RZ 6 rotary vane pump, an oil mist filter FO, butterfly valve VS 16, and the VACUU·VIEW extended vacuum gauge, all configured for 230 V/50–60 Hz with CEE mains compatibility.
2. Is this product suitable for laboratory and process applications requiring low ultimate vacuum at medium to increased gas flow rates?
Yes. It is designed for laboratory and process applications requiring low ultimate vacuum at medium to increased gas flow rates, and offers a pumping speed of 5.7 m³/h at 50 Hz and an ultimate vacuum of 2 × 10−3 mbar to support this kind of work.
3. What pumping speed and ultimate vacuum does this product have?
It has a pumping speed of 5.7 m³/h at 50 Hz, an ultimate vacuum of 2 × 10−3 mbar and a noise level of 50 dBA.
4. What included components does this product offer?
It offers RZ 6 pump, oil mist filter FO, butterfly valve VS 16, VACUU·VIEW extended vacuum gauge, rotary vane pump, oil mist filter FO and butterfly valve VS 16.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth420 mm
- Dimensions (WxDxH)230 x 420 x 240 mm
- Flow rate95 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level50 db(A)
- Plug typeEU
- Power supply230 V, 50/60 Hz
- Rated capacity180 W
- TypeRZ 6+FO+VS 16+VACUU·VIEW extended
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight17.8 kg
- Width230 mm
