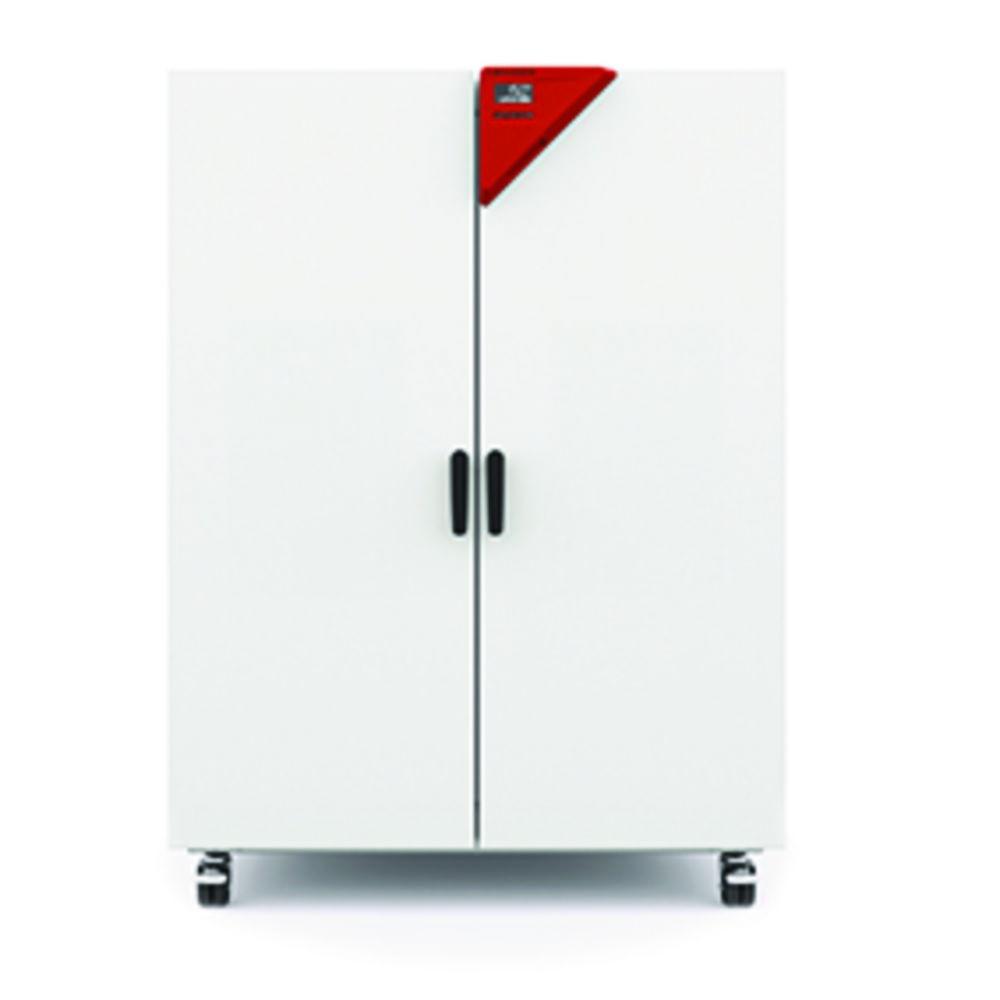

BINDER Drying and Heating Chamber ED 720 with Natural Convection 743 L Interior Volume, 400V
Representative image only

BINDER Drying and Heating Chamber ED 720 with Natural Convection 743 L Interior Volume, 400V

Sold by: Labex Pty Ltd
Available Soon
Part #: 4.679 312Manufacturer #: 9010-0341
Estimated shipping time:Contact us via live chat or via contact us page

R 213 413,55

See the available (8) variant products
Product overview

The BINDER Drying and Heating Chamber ED 720 is engineered for precise and efficient drying and sterilization tasks up to +300 °C. Utilizing natural convection and APT.line™ technology, it ensures uniform temperature distribution throughout its spacious 743-liter interior. This chamber is ideal for laboratories requiring high-performance thermal processing.

Key Features:

  • Brand: BINDER
  • Temperature Range: +5 °C above ambient to +300 °C
  • Interior Volume: 743 liters
  • Convection Type: Natural convection
  • Temperature Uniformity at 150 °C: ±3.2 K
  • Temperature Fluctuation at 150 °C: ±0.8 K
  • Heating-Up Time to 150 °C: 85 minutes
  • Recovery Time After Door Opening at 150 °C: 25 minutes
  • Energy Consumption at 150 °C: 700 Wh/h
  • Controller: LCD display with USB data logging
  • Safety: Class 2 independent temperature safety device (DIN 12880) with visual alarm
  • Construction: Stainless steel interior with 2 chrome-plated racks (expandable up to 16)
  • Voltage: 400 V, 50/60 Hz, 3-phase

This drying and heating chamber is an excellent choice for laboratories seeking reliable, energy-efficient, and high-capacity thermal processing solutions.

Product Specifications
  • HS Code #84198998
  • Depth int.605 mm
  • Ext. dim. (WxDxH)1,165 x 870 x 1,590 mm
  • Ext. depth870 mm
  • Ext. height1590 mm
  • Ext. width1165 mm
  • Power supply frequency50/60 Hz
  • Height int.1280 mm
  • Int. Dim. (WxDxH)960 x 605 x 1,280 mm
  • Int. width960 mm
  • IP codeIP 20
  • Material interiorStainless steel
  • Max. no. of inserts16
  • Max. temperature300 °C
  • Max. voltage400 V·3/N/PE
  • Min. temperature+5 °C
  • Nominal capacity743 l
  • Plug typeCEE
  • Power supply400 V·3/N/PE, 50/60 Hz
  • Rated capacity4100 W
  • Temperature stability±0,8 K (150 °C)
  • TemperatureRT
  • TemperatureRT+5 ... 300 °C
  • TypeED 720
  • Type of auxiliary energyMains connection
  • UNSPSC41104510
  • Weight169 kg
  • With timerYes
