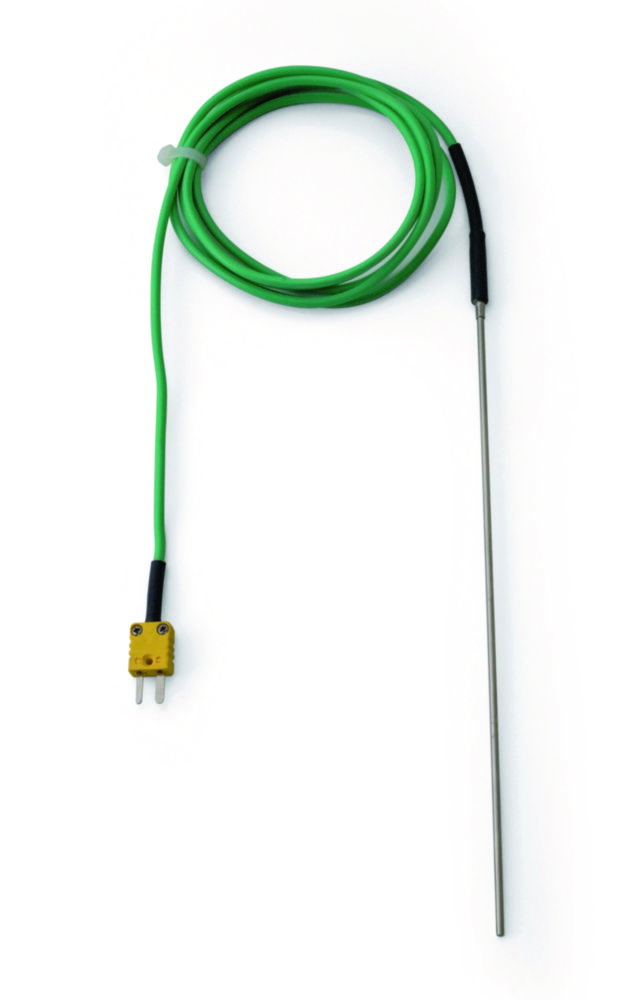

Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 150mm, Sheath Diameter 0.5mm, Application Range -50 To +200°C
Sold by: Labex Pty Ltd
Available Soon
Part #: 6.313 332Manufacturer #: 71116
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 150mm, Sheath Diameter 0.5mm, Application Range -50 To +200°C is designed for precise immersion temperature measurement in laboratory and technical applications. This mineral-insulated thermocouple uses 1 x NiCr-Ni Type K construction and features a fine 0.5mm sheath for accurate measurement in compact immersion setups.
Key Features:
- Brand: Ludwig
- Sensor Type: Type K thermocouple for immersion
- Material: 1 x NiCr-Ni Type K
- Connector: Yellow miniature connector
- Nominal Length: 150mm
- Sheath Diameter: 0.5mm
- Application Range: -50 to +200°C
- Compliance: DIN EN 60584 Class 1
This Ludwig Type K immersion sensor is suitable for users requiring a fine sheath mineral-insulated thermocouple for reliable temperature measurement in liquid or immersion applications.
Product Specifications
- HS Code #90251900
- Cable length2 m
- Ø0.5 mm
- Dimensions (ØxL)0.5 x 150 mm
- Length150 mm
- Max. temperature200 °C
- Min. temperature-50 °C
- Sort of probeImmersion probe
- Temperature-50 ... 200 °C
- Type of probeType K
Variant products
Products related to this item (9)
product | Mfr # | Part # | Product name | Type of probe | Max. temperature | Price | Availability | |
71111 | 6.313 337 | Ludwig Schneider Sensor Type K for Immersion (NiCr-Ni) with Miniature Connector, Yellow, Nominal Length 400 mm, Sheath Ø 3 mm, Application Range -100 to +800 °C | Type K | 800 °C | 4 528,70 | |||
71110 | 6.313 338 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 150mm, Sheath Diameter 3mm, Application Range -50 to +200°C | Type K | 200 °C | 4 301,00 | |||
71114 | 6.313 334 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 250mm, Sheath Diameter 1mm, Application Range -100 To +400°C | Type K | 400 °C | 4 807,00 | |||
71117 | 6.313 330 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 250mm, Sheath Diameter 0.5mm, Application Range -100 To +400°C | Type K | 400 °C | 5 262,40 | |||
57499 | 9.236 709 | Ludwig Mineral-Insulated Thermocouple NiCr-Ni Type K, -200 To +800°C, According To DIN EN 60584 Class 1 | Type K | 400 °C | 4 376,90 | |||
71112 | 6.313 336 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 600mm, Sheath Diameter 3mm, Application Range -100 To +1000°C | Type K | 1000 °C | 5 060,00 | |||
71118 | 6.313 329 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 400mm, Sheath Diameter 0.5mm, Application Range -100 To +800°C | Type K | 800 °C | 5 388,90 | |||
71113 | 6.313 335 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 150mm, Sheath Diameter 1mm, Application Range -50 To +200°C | Type K | 200 °C | 4 705,80 | |||
71115 | 6.313 333 | Ludwig Sensor Type K For Immersion (NICR-NI), With Miniature Connector Yellow, Nominal Length 400mm, Sheath Diameter 1mm, Application Range -100 To +800°C | Type K | 800 °C | 4 958,80 |
