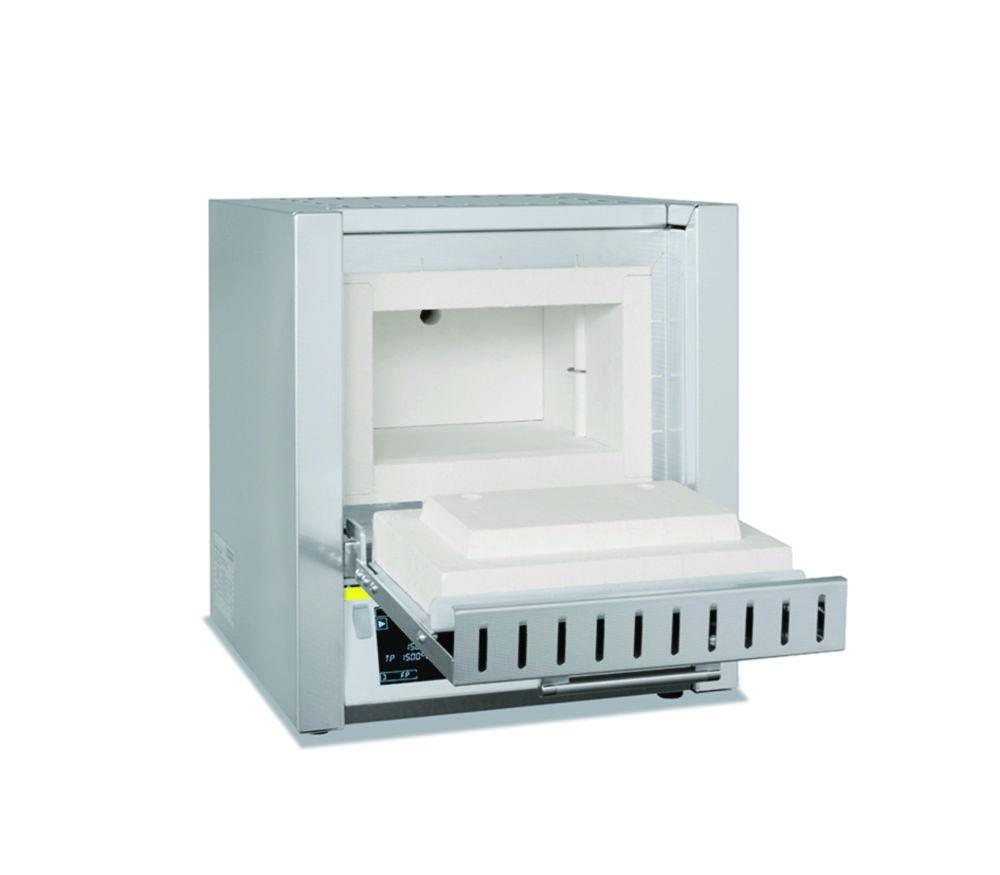

Nabertherm Muffle Furnace L 24/11/C550, with Controller (400 Volt)
Product overview
The Nabertherm Muffle Furnace L 24/11/C550, with Controller (400 Volt) is a reliable and efficient furnace designed for high-temperature applications in laboratories and industrial environments. With a maximum temperature of 1100°C, it is equipped with the advanced C550 controller, ensuring precise temperature regulation for tasks like sintering, ashing, and thermal treatments. The 400-volt power supply guarantees quick and consistent heating, making it ideal for demanding processes that require high precision.
Key Features:
- Brand: Nabertherm
- Model: L 24/11/C550
- Max Temperature: 1100°C
- Controller: C550 for precise temperature control
- Power Supply: 400 Volt
- Applications: Suitable for sintering, ashing, and laboratory heating applications
The Nabertherm Muffle Furnace L 24/11/C550 is engineered for performance and reliability. Its 400-volt power supply and advanced controller provide accurate temperature management, making it an excellent choice for various thermal processes in research and industrial settings.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 24/11/C550, with Controller used for?
It is a reliable and efficient furnace designed for high-temperature applications in laboratories and industrial environments. With a maximum temperature of 1100°C, it is equipped with the advanced C550 controller, ensuring precise temperature regulation for tasks like sintering, ashing, and thermal treatments. The 400-volt power supply guarantees quick and consistent heating, making it ideal for demanding processes that require high precision.
2. Is this product suitable for sintering, ashing, and laboratory heating applications?
Yes. It is designed for sintering, ashing, and laboratory heating applications, and offers a max temperature of 1100°C and a power supply of 400 Volt to support this kind of work.
3. What max temperature and power supply does this product have?
It has a max temperature of 1100°C and a power supply of 400 Volt.
4. What controller does this product offer?
It offers the following key features: C550 for precise temperature control, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace, heating from two sides (three sides for interior volumes of 24 and 40 l) and flap door can be used as work platform.
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)490 x 555 x 580 mm
- Ext. depth555 mm
- Ext. height580 mm
- Ext. width490 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)280 x 340 x 250 mm
- Int. width280 mm
- Max. temperature1100 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity24 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity4500 W
- TypeL 24/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
