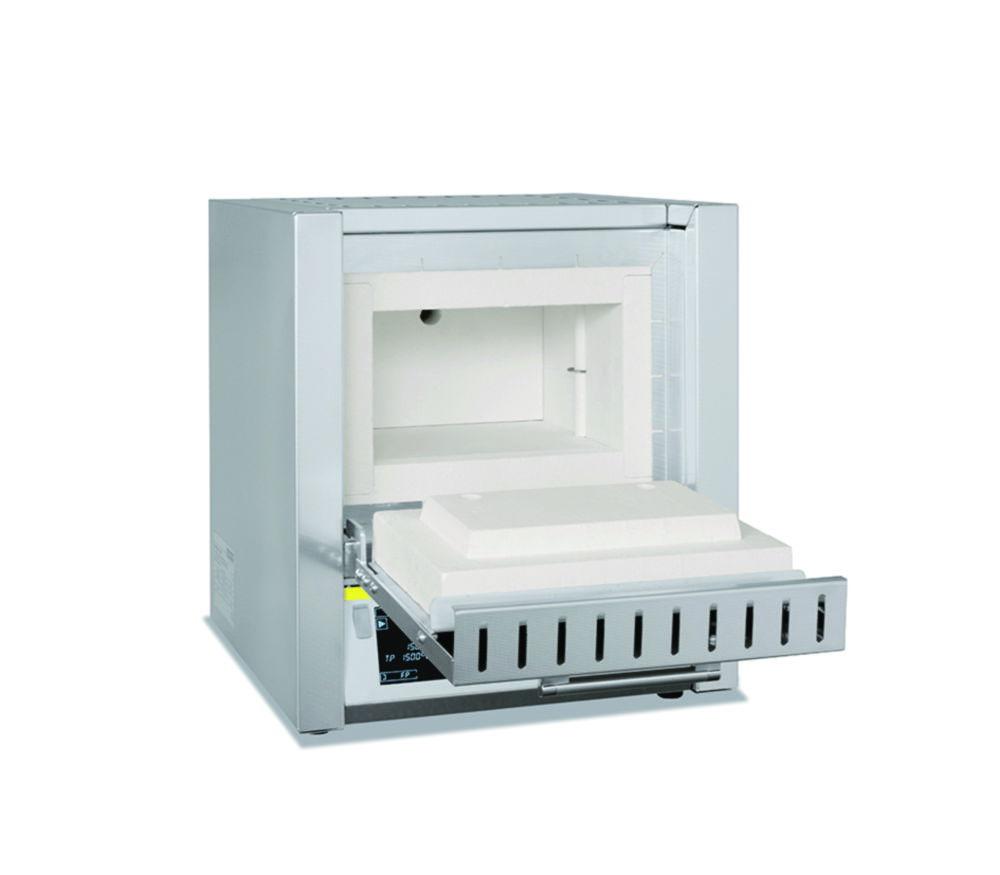

Nabertherm Muffle Furnace L 40/11/C550, with Controller (400 Volt)
Product overview
The Nabertherm Muffle Furnace L 40/11/C550 is a high-performance furnace designed to meet the demands of professional laboratories and industrial applications. With a maximum temperature of 1100°C, this muffle furnace is equipped with a C550 controller, offering precise temperature control for a variety of heat treatments such as ashing, sintering, and materials testing. The 400-volt power supply ensures efficient and reliable heating for consistent results in demanding processes.
Key Features:
- Brand: Nabertherm
- Model: L 40/11/C550
- Max Temperature: 1100°C
- Controller: C550 for accurate temperature regulation
- Power Supply: 400 Volt
- Applications: Ideal for sintering, ashing, and laboratory heating applications
This versatile Nabertherm Muffle Furnace L 40/11/C550 is designed to deliver reliable performance in high-demand environments. The 400-volt power supply ensures optimal heating, while the advanced C550 controller offers precise temperature management for improved efficiency and accuracy in thermal processing.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 40/11/C550, with Controller used for?
It is a high-performance furnace designed to meet the demands of professional laboratories and industrial applications. With a maximum temperature of 1100°C, this muffle furnace is equipped with a C550 controller, offering precise temperature control for a variety of heat treatments such as ashing, sintering, and materials testing. The 400-volt power supply ensures efficient and reliable heating for consistent results in demanding processes.
2. Is this product suitable for sintering, ashing, and laboratory heating applications?
Yes. It is designed for sintering, ashing, and laboratory heating applications, and offers a max temperature of 1100°C and a power supply of 400 Volt to support this kind of work.
3. What max temperature and power supply does this product have?
It has a max temperature of 1100°C and a power supply of 400 Volt.
4. What controller does this product offer?
It offers the following key features: C550 for accurate temperature regulation, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace, heating from two sides (three sides for interior volumes of 24 and 40 l) and flap door can be used as work platform.
Product Specifications
- HS Code #85141980
- Depth int.490 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 705 x 580 mm
- Ext. depth705 mm
- Ext. height580 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)320 x 490 x 250 mm
- Int. width320 mm
- Max. temperature1100 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity40 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity6000 W
- TypeL 40/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight65 kg
