Representative Image

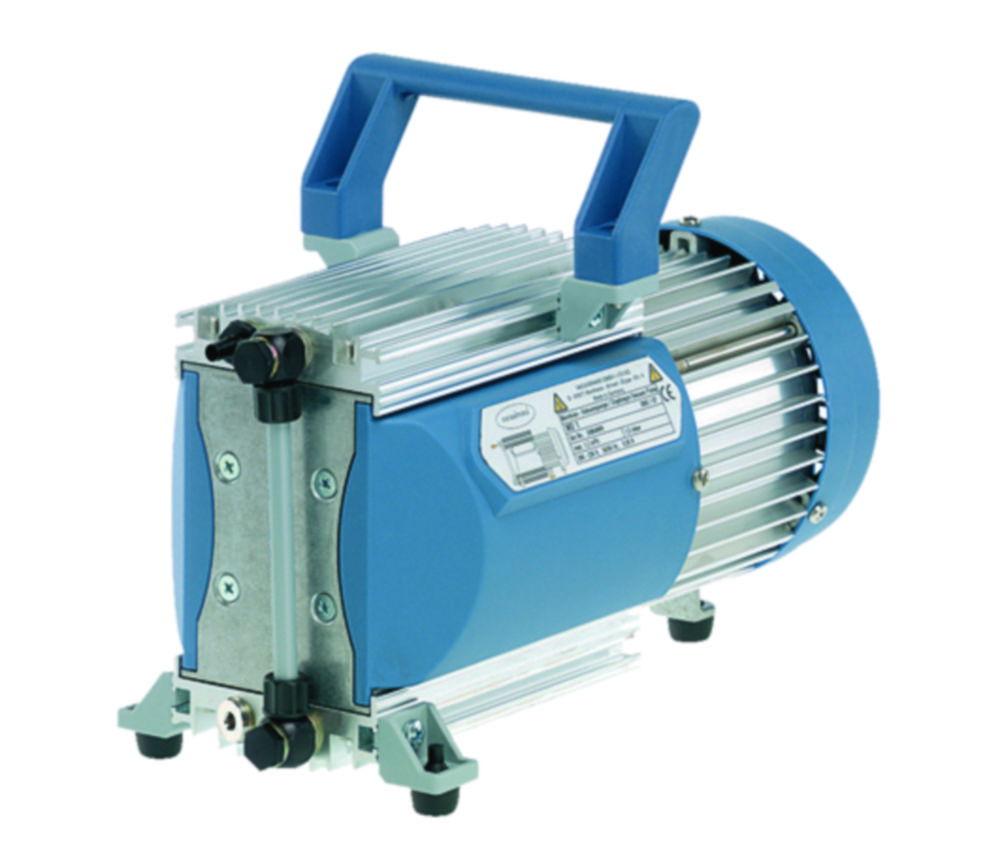

Vacuubrand MD 1, Diaphragm Pump, Three-Stage, UK Plug

Plug type

Specifications

Compare models
HS Code #
84141089
Connection pressure side
G1/8"
Connection suction side
DN 6
Depth
326 mm
Dimensions (WxDxH)
143 x 326 x 215 mm
Flow rate
1.2 m³/h
Height
215 mm
No. of stages
3
Plug type
UK
Type
MD 1
Type of auxiliary energy
Mains connection

Alternative in-stock items

R 58 949,00

Inc. VAT

Available soon

Product description

The Vacuubrand MD 1 Diaphragm Pump is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of non-corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

Key Features:

  • Brand: VACUUBRAND
  • Model: MD 1
  • Type: Chemistry diaphragm pump
  • Number of Stages: 3
  • Ultimate Vacuum: 1.5 mbar (1.1 torr)
  • Maximum Pumping Speed: 1.2 m³/h (50 Hz); 0.82 cfm (60 Hz)
  • Voltage Options: 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz
  • Plug Type: UK (BS 1363)
  • Dimensions: 143 mm (W) x 326 mm (D) x 215 mm (H)
  • Weight: 7.3 kg
  • Materials in Contact with Media: Chemically resistant fluoroplastics
  • Protection Class: IP 40
  • Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MD 1 features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081R 2 150,50
PVC34.9 mm206860634.714 084R 5 717,80
PVC38.1 mm206860654.714 085R 6 653,90
PVC15.9 mm206860614.714 082R 2 504,70
PVC22.3 mm206860624.714 083R 3 466,10

Compare similar models

Diaphragm pump MD 1 Uk-Plug
Available soon
Vacuubrand MD 1, Diaphragm Pump, Three-Stage, UK Plug

R 58 949,00

Inc. VAT

Manufacturer P/N

20696082

Part Number

6.284 823

Manufacturer

VACUUBRAND​

Plug type

UK

Diaphragm pump MD 1
Available soon
Vacuubrand Diaphragm Pump MD 1

R 58 949,00

Inc. VAT

Manufacturer P/N

20696080

Part Number

9.880 080

Manufacturer

VACUUBRAND​

Plug type

EU

Diaphragm pump MD 1, three stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V / 60 Hz, 220-230 V / 50-60 Hz, CH/CN power cord

Manufacturer P/N

20696081

Part Number

4.670 337

Manufacturer

VACUUBRAND​

Plug type

CH

Diaphragm pump MD 1, three stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V / 60 Hz, 220-230 V / 50-60 Hz, US power cord

Manufacturer P/N

20696083

Part Number

4.670 338

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps, Aluminium PTFE design, ME 1

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1207210009.880 930In stockR 23 807,30
UKME 1207210029.880 932R 23 807,30
CHME 1207210019.880 931R 23 807,30
USME 1207210039.880 933R 23 807,30

Frequently asked questions

It is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of non-corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.
