Representative Image

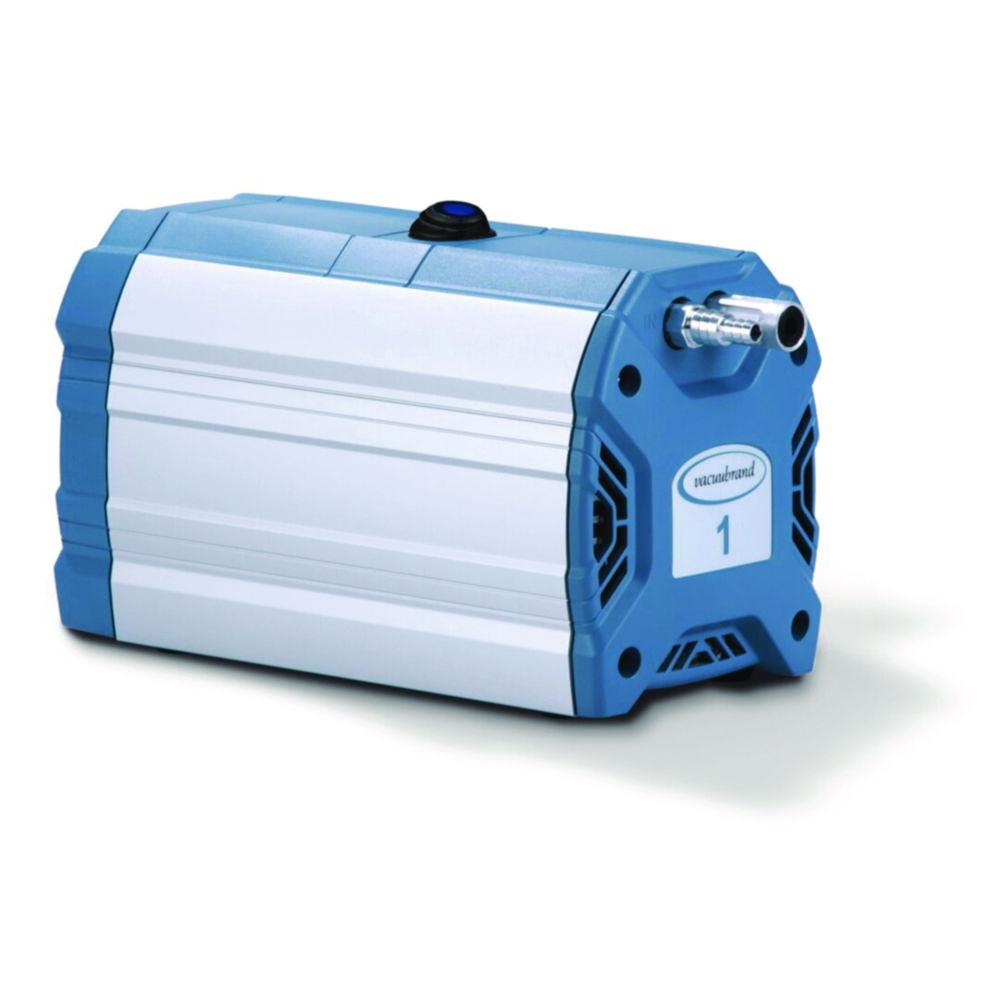

Vacuubrand Membrane Pump ME 1, 230 V, 50/60 Hz, UK Mains Cable

Plug type

Specifications

Compare models
Connection pressure side
G1/8"
Connection suction side
DN 6-10 mm
Depth
270 mm
Dimensions (WxDxH)
121 x 270 x 155 mm
Flow rate
0.7 m³/h
Height
155 mm
No. of stages
1
Plug type
UK
Type
ME 1
Type of auxiliary energy
Mains connection

R 23,807.30

Inc. VAT

Available soon

Product description

The Vacuubrand ME 1 is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a UK mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: ME 1
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 0.7 m³/h (50 Hz)
  • Ultimate Vacuum: 100 mbar (75 torr)
  • Number of Stages: 1
  • Number of Heads: 1
  • Inlet Connection: Hose nozzle DN 6–10 mm
  • Outlet Connection: Silencer / G1/8"
  • Rated Motor Power: 0.04 kW
  • Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x W x H): 270 x 121 x 155 mm
  • Weight: 5.4 kg
  • Noise Level: 49 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Downloads

Accessories

Pumps, vacuum / pressure, diaphragm, Vacuubrand, accessories

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Safety valve, DN 16 (Stainless steel, PTFE)40151502206396839.880 971R 6,653.90
Fork root40151502206386436.263 959R 126.50
KF connection40151502206968209.880 843R 3,213.10
Round bottom flask 500 ml with spherical joint, coated40151502206384977.089 128R 3,693.80

Regulator valves for membrane pumps

ProductDescriptionForMfr#Part#AvailabilityPrice
vacuumME 1C206968439.880 939R 10,423.60
vacuumME 1206968429.880 938R 4,933.50
pressureME 2, MZ 2206968419.880 846R 8,349.00
vacuumME 4 NT, MZ 4 NT, MD 4 NT206968409.880 845R 6,350.30

Compare similar models

Membrane pump ME 1 230 V / 50-60 Hz, UK-mains cable

Manufacturer P/N

20721002

Part Number

9.880 932

Manufacturer

VACUUBRAND​

Plug type

UK

Membrane pump ME 1 230 V / 50-60 Hz, CEE-mains cable

Manufacturer P/N

20721000

Part Number

9.880 930

Manufacturer

VACUUBRAND​

Plug type

EU

Membrane pump ME 1 230 V / 50-60 Hz, CH-mains cable

Manufacturer P/N

20721001

Part Number

9.880 931

Manufacturer

VACUUBRAND​

Plug type

CH

Membrane pump ME 1 100-120 V / 50-60 Hz, US-main cable

Manufacturer P/N

20721003

Part Number

9.880 933

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps, Aluminium, MD 12 NT VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMD 12 NT VARIO select257431504.687 918R 292,063.20
USMD 12 NT VARIO select257431534.701 145R 292,063.20

Diaphragm pumps, Aluminium PTFE design, MD 1

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMD 1206960809.880 080R 58,949.00
CHMD 1206960814.670 337R 58,949.00
UKMD 1206960826.284 823R 58,949.00
USMD 1206960834.670 338R 58,949.00

Frequently asked questions

It is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a UK mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.
